Gauges—Coolant Temperature, Engine Oil Pressure and Fuel Level

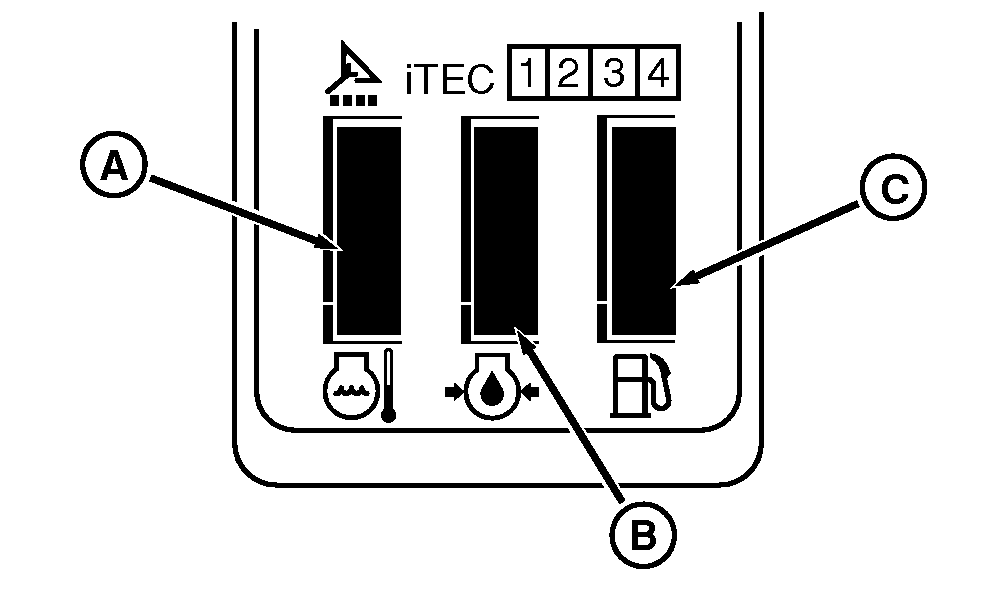

RXA0099154-UN-27JAN09

A - Coolant Temperature Gauge

B - Engine Oil Pressure Gauge

C - Fuel Level Gauge

A—Coolant Temperature Gauge: Shows engine coolant temperature between 40 °C — 120 °C (104 °F—248 °F). All segments are off when coolant temperature is below 40 °C (104 °F). All segments are lit when temperature is 120 °C (248 °F) and above.

B—Engine Oil Pressure Gauge: Shows engine oil pressure, between 8 — 320 kPa (1 — 46 psi). All segments are off when oil pressure is extremely low, 0—7 kPa (0—1 psi). All segments are lit when pressure is 320 kPa (46 psi) and above.

C—Fuel Level Gauge: Displays fuel level in tank. Each lighted segment represents 4% of the fuel tank total capacity. When fuel tank is full, all segments are lit. When only the bottom segment is lit, the tank is nearly empty with approximately 40—60 L (10—15 gal.) remaining.
