Operating Hazard Lights and Extremity Transport Lights

RXA0086584-UN-09FEB06

Use Safety Lights and Devices Warning

RXA0098436-UN-07JUL08

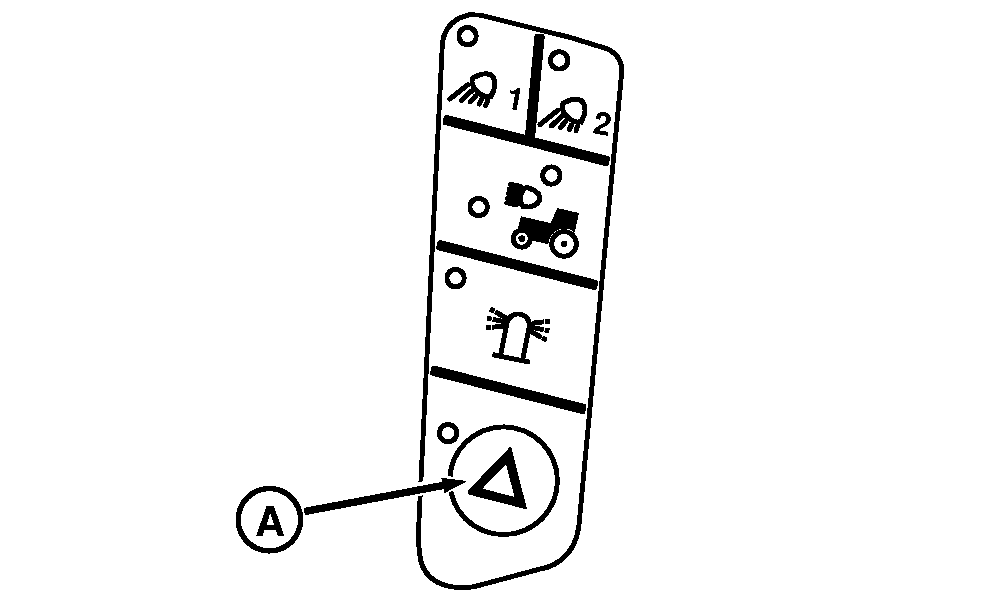

Hazard Light Button

RXA0099877-UN-02DEC08

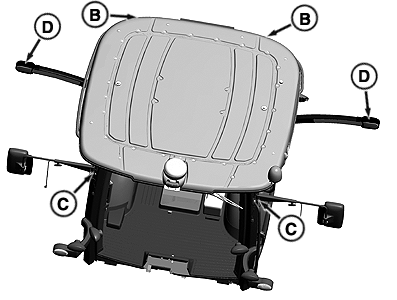

Cab Amber Lights

RXA0099874-UN-09JUL12

RXA0099875-UN-02DEC08

A - Hazard Light Switch

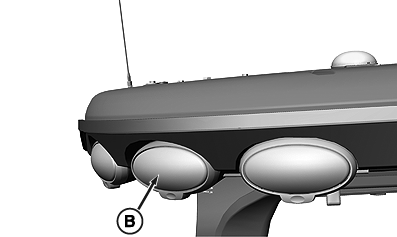

B - Rear Center Lights Equipped With Amber Lens

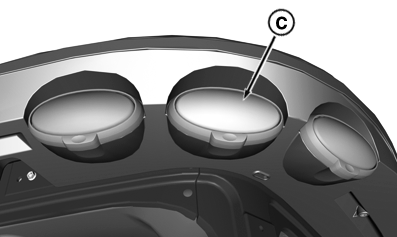

C - Front Center Lights Equipped With Amber Lens

D - Extremity Transport Lights

CAUTION: To prevent possible personal injury, always operate flashing lights when traveling on a highway or public roads, except where prohibited by law.

Extremity Transport Lights (D) are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity Transport Lights alert other vehicles of your extended width. Use flashing warning lights and turn signals day and night. Follow local regulations for equipment lighting and marking.

Push Hazard Switch (A) to activate flashing amber hazard lights (B, C, and D).

IMPORTANT: To avoid damage, extremity lights may be retracted when parking tractor in storage building.

Extremity Transport Lights operate with Hazard Light Switch ”ON”.

Adjust Extremity Transport Lights no more than 400 mm (16 in.) from widest point of tractor.
