Starting the Engine

CAUTION:

TS177-UN-11JAN89

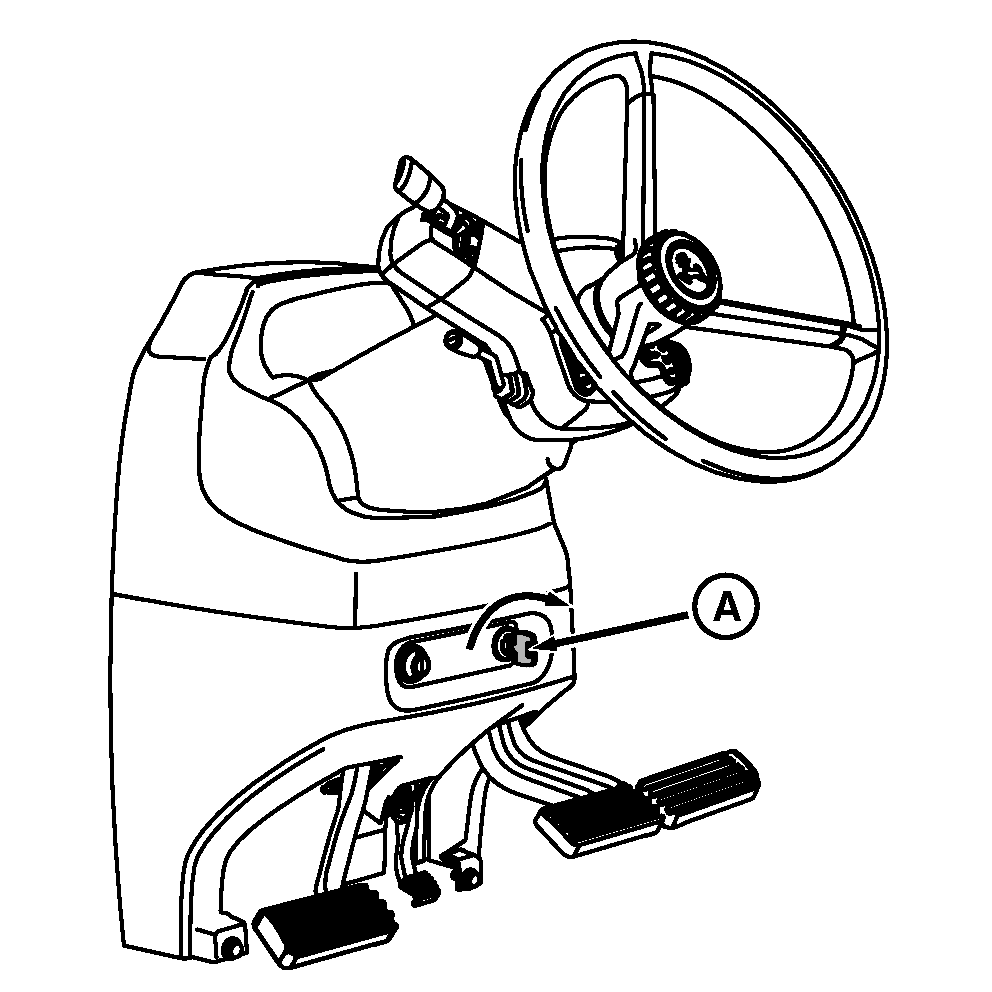

RXA0098446-UN-19MAR09

A - Ignition Key

Avoid the possibility of personal injury or death. Engine starting with shift lever in gear indicates a malfunction of the starting circuit. Repairs should be made immediately by your John Deere dealer.

Do not start engine by shorting across starter terminals. Tractor will start in gear if normal circuitry is bypassed. Start engine ONLY from the operator seat.

Before Starting The Tractor

1. SCV levers are in NEUTRAL position.
2. PTO is disengaged.
3. Hand throttle is in slow idle position.
4. Transmission shift lever is in PARK position.
5. Be sure everyone is clear of tractor and attached equipment.
6. Depress clutch and brake pedals.
7. Sound the horn.

IMPORTANT: Avoid starter damage. Do not operate starter more than 30 seconds. Wait at least two minutes before trying again.

Turn ignition key (A) to engage starter. Release key when engine starts.

If Engine Fails To Start:

Check Fuel (quality and quantity).

Check Electrical system.

In cold weather (at or below -6 °C (21 °F), follow steps listed in Cold Weather Starting—With Starting Aid or Cold Weather Starting—Without Optional Starting Aid.

If engine fails to start after three attempts, it may be necessary to consult a John Deere service technician.

NOTE: For tractors equipped with IVT (Infinitely Variable Transmission)™, the engine speed will be limited to 1500 rpm if the transmission oil temperature is less than -5 °C (23 °F).

For tractors equipped with PST, the engine speed will be limited to 1500 rpm if the transmission oil temperature is less than -18 °C (0 °F).
