Checking Engine Oil

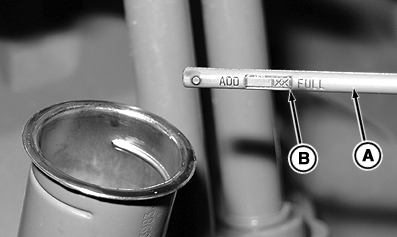

RXA0078347-UN-08DEC04

A - Dip Stick

B - Cross Hatch Area

Remove dipstick and check oil level with tractor on level ground before starting tractor. Oil level should be between the ”ADD” and the top of the cross-hatch area (B) on dipstick (A).

NOTE: Tighten dipstick to check oil. Cross-hatch area is considered FULL.

IMPORTANT: Do not operate engine with oil level below the ”ADD” mark on dipstick.
