Draining Air Brake Tank

RXA0097298-UN-19FEB08

RXA0098555-UN-16JUN08

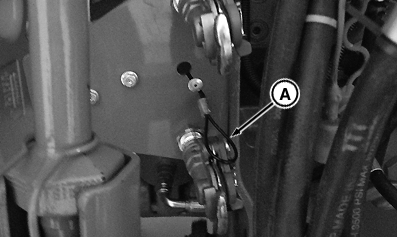

A - Air Tank Drain Cable

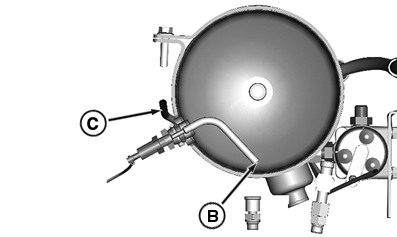

B - Tube

C - Lever

NOTE: Air brake tank should be drained before beginning daily operations. Air tank is designed in such a way that when air tank drain cable is pulled, lever (C) opens valve allowing water to drain. Tank is designed with tube (B) near the bottom of tank to collect water that accumulates

Pull Air Tank Drain Cable (A) at the back of tractor to drain air brake tank.
