Checking Coolant Level (Coolant Recovery Tank)

1. Check coolant level at sight tube (A), BEFORE starting tractor. Level should be above lower mark when engine is cold.

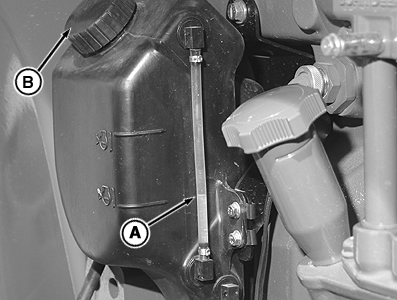

   RXA0078349-UN-11APR05

   Left-Hand Side

   A - Sight Tube

   B - Coolant Recovery Tank Cap

---




2. If coolant level is low:

   1. Raise hood.

   2. Check for any signs of leakage. Repair if necessary.

      NOTE: If coolant recovery tank still needs coolant and there is no sign of an external leak, this may indicate an internal coolant leak. Contact your John Deere dealer for service.

   3. Remove coolant recovery tank cap (B) and add coolant, as specified in Fuel, Lubricants and Coolant section.

   4. Lower hood.
