Servicing Air Intake System

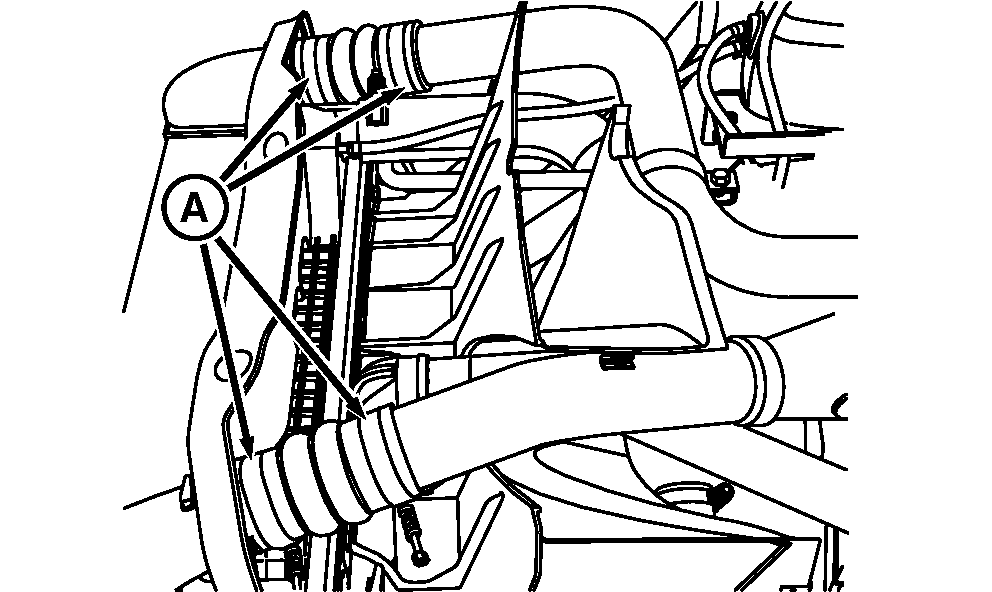

Check all air intake system joints (A) to make sure that they are not damaged and have tight connections with no air leaks. Interval can vary according to operating conditions

RXA0080176-UN-07APR05

RXA0079201-UN-22FEB05

RXA0079202-UN-22FEB05

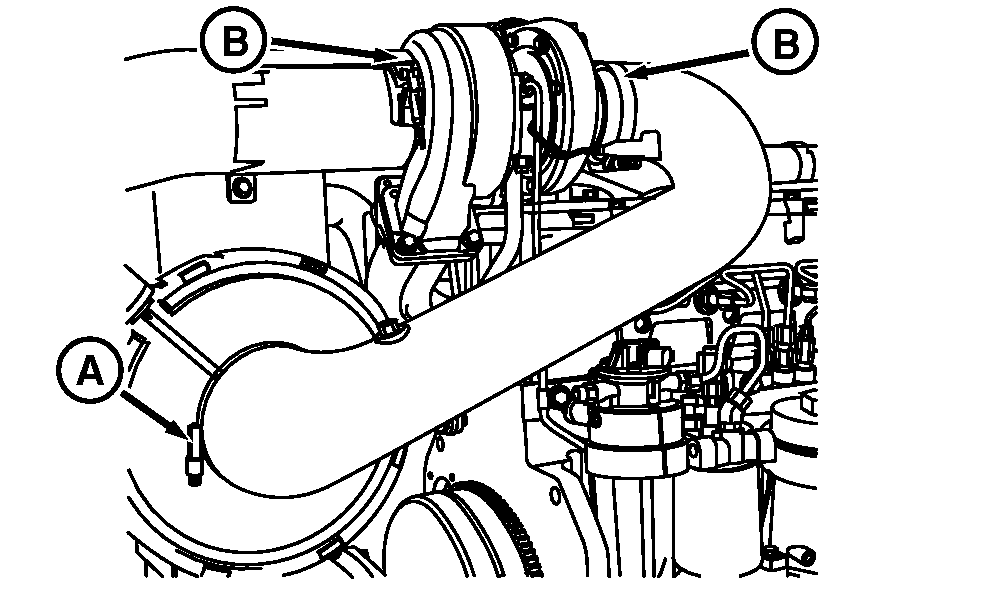

A - Air Intake System Joint

B - Hose Clamps

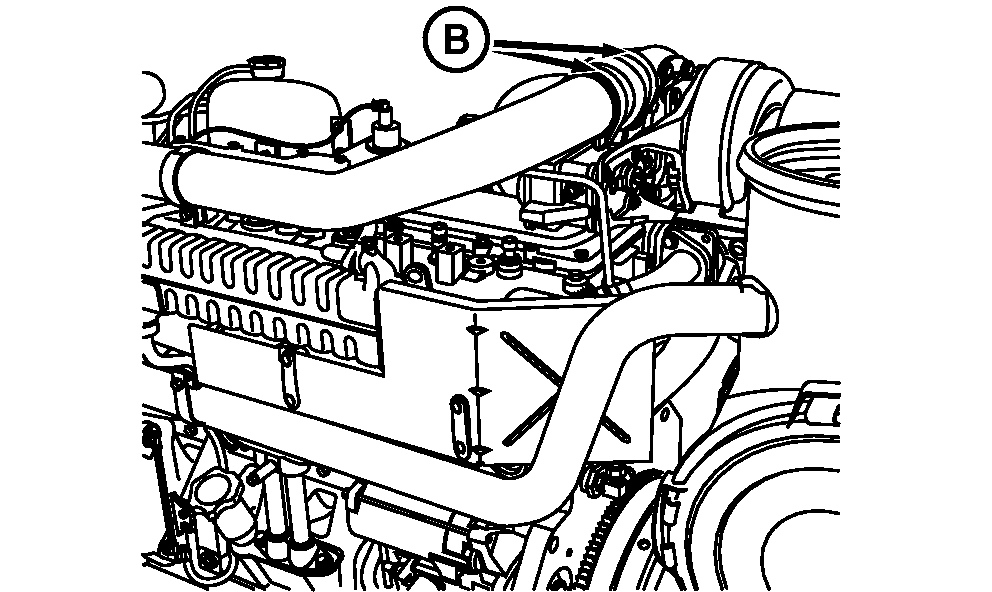

Check hose clamps (B) at turbocharger to make sure that that they are not damaged and have a tight connection.
