Changing MFWD Or Independent Link Suspension Wheel Hub Oil

1. Put the tractor on level surface.


   RW26336-UN-25JUN99

---

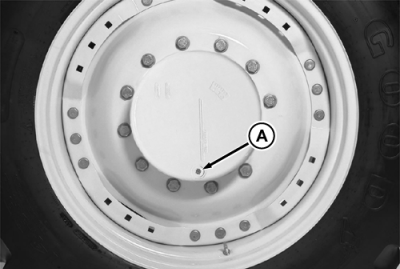

2. Rotate wheel until drain/fill hole (A) is at bottom of hub. Remove plug and drain oil.

3. Rotate wheel with drain/fill plug positioned horizontally after oil has drained.

4. Add John Deere GL-5 Gear Lubricant through drain-fill hole until oil is even with bottom of hole. Replace plug.

   Wheel Hub Capacity (Each)
   Standard MFWD Axle .............. 3.8 L (4 qt)
   MFWD Axle with Independent Link Suspension .............. 3.8 L (4 qt)
