Cleaning Radiator, Coolers and Air Conditioning Condenser

1. Stop engine and raise hood.

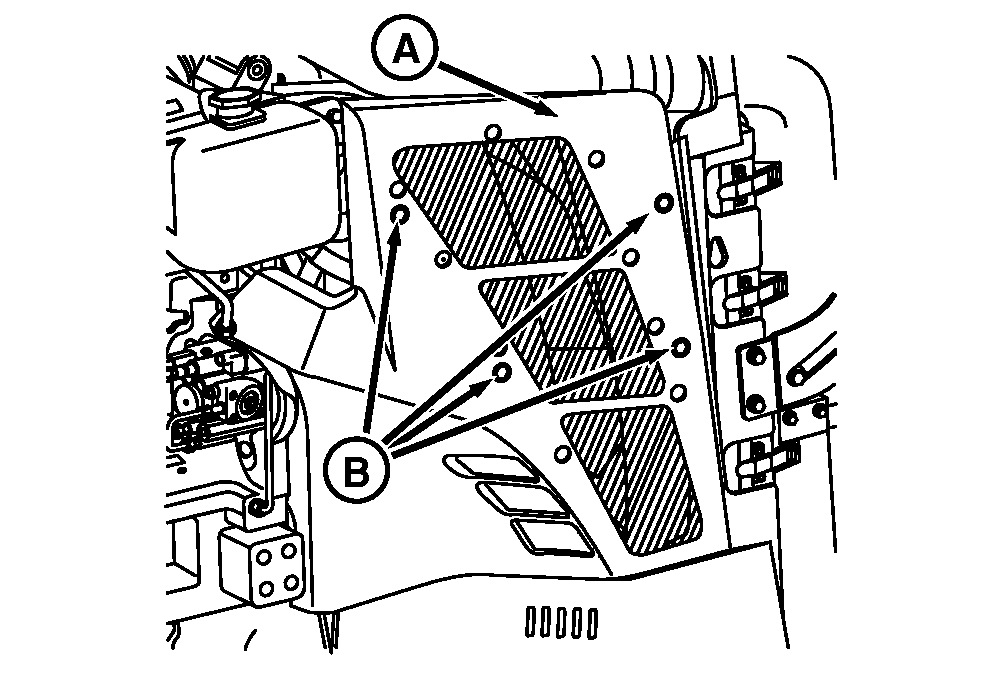

   RXA0074933-UN-26MAY04

   A - Front Side Shield

   B - Cap Screws

---




2. Remove four cap screws (B) and front side shield (A).

3. Release three spring latches (E) per side.

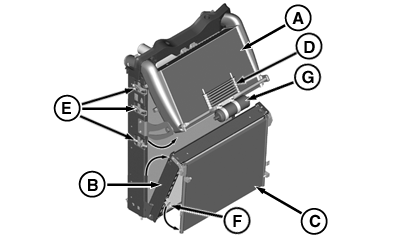

   RXA0078741-UN-29MAR05

   A - Charge Air Cooler

   B - Hydraulic Oil Cooler

   C - Air Conditioner Condenser

   D - Fuel Cooler

   E - Latches

   F - Plastic Latches

   G - Receiver/Dryer

   NOTE: To avoid damaging receiver/dryer (G), charge air cooler (A) must swing up first, then Hydraulic oil cooler (B) can swing down.

---




4. Swing open charge air cooler, then hydraulic oil cooler.

5. Release plastic latches (F), then swing air conditioner condenser (C) forward.

   NOTE: Using an air hose, clean radiator and cooler units by blowing out any foreign material from back to front.

6. Clean radiator, charge air cooler and hydraulic oil cooler by blowing air through each of them.

7. Blow air through air conditioner condenser.

8. Close hydraulic oil cooler and latch.

9. Return condenser to original position and latch.

10. Close charge air cooler, close latches, then remove any remaining debris on fuel cooler (D) front.
