Checking Weep Hole

1. Remove left-hand side panel.


   RXA0082662-UN-28JUL05

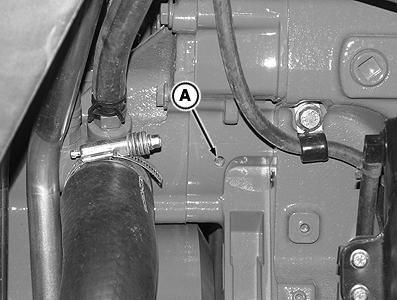

   Coolant Pump Weep Hole

   A - Weep Hole

---




2. Inspect weep hole (A) for oil or coolant leakage.

   • Oil leakage indicates a damaged rear seal.
   • Coolant leakage indicates a damaged front seal.



   If leakage is detected, see your John Deere dealer to replace complete coolant pump assembly (repair parts are not available).
