Maintaining Optional Fuel Water Separator Filter Element—If Equipped

RXA0084318
RXA0084318-UN-26SEP05

RXA0084320
RXA0084320-UN-26SEP05

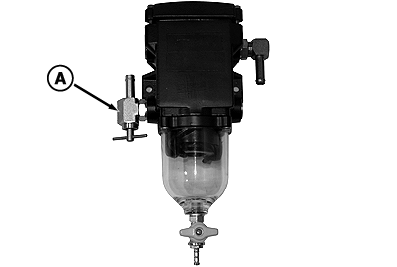

A - Fuel Shut-Off Valve

NOTE: After filter element has been back flushed up to five time, clean filter. Replace filter when light is no longer visible while holding filter up to the light.

  1. Close fuel shut-off valve (A).

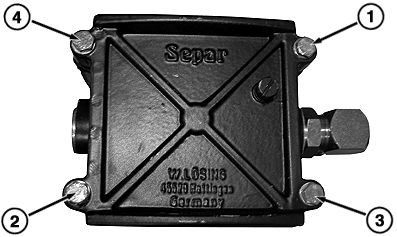

  2. Loosen lid screws evenly in sequence shown.

  3. RXA0084322
    RXA0084322-UN-26SEP05

    RXA0084324
    RXA0084324-UN-26SEP05

    RXA0084320
    RXA0084320-UN-26SEP05

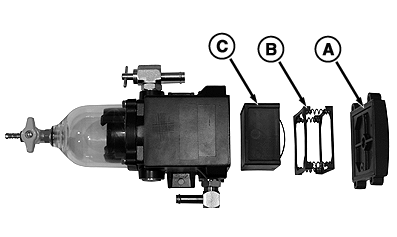

    A - Lid

    B - Spring Cassette

    C - Filter Element

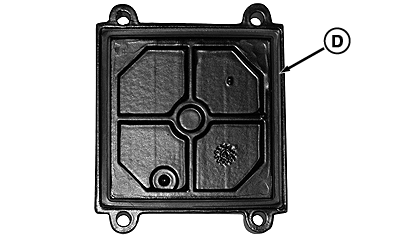

    D - Lid Gasket

    Remove lid (A), spring cassette (B), and filter element (C). Save lid and spring cassette.


  4. Install new filter element and spring cassette (B) from step 3.

  5. Inspect lid gasket (D) condition and replace if necessary.

  6. Install lid (A) and tighten in sequence shown.

  7. Open fuel shut-off valve.

  8. Start and run engine at fast idle for 2 minutes. If engine won’t start or dies, see REPLACING FUEL FILTER ELEMENTS in tractor Operator's Manual and follow instructions for priming engine.

OURX935,0000314-19-20080617
