Adjusting Front Grille Lights

RXA0080172
RXA0080172-UN-08APR05

RXA0080168
RXA0080168-UN-08APR05

RXA0080565
RXA0080565-UN-02AUG05

A - Position

B - Aiming Cap Screws

C - Plastic Retainers

D - Screw Tips

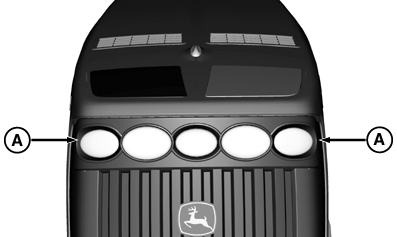

  1. To remove bezel, place one hand on each side of bezel (A) and pull straight back.

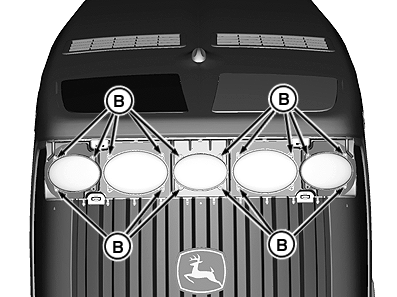

  2. Adjust the light beam by turning aiming screws (B).

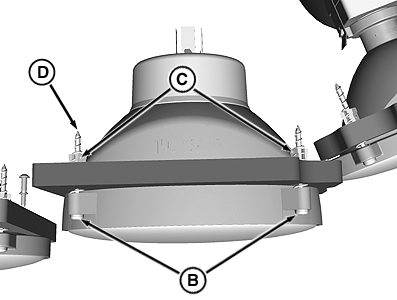

  3. To return light to factory setting, adjust cap screws so the screw tips (D) are flush with plastic retainers (C), then adjust light beams from there.

OURX935,000031D-19-20080612
