Replacing Extremity Warning Light Bulb (if Equipped)

RXA0068524-UN-09SEP03

RXA0068525-UN-09SEP03

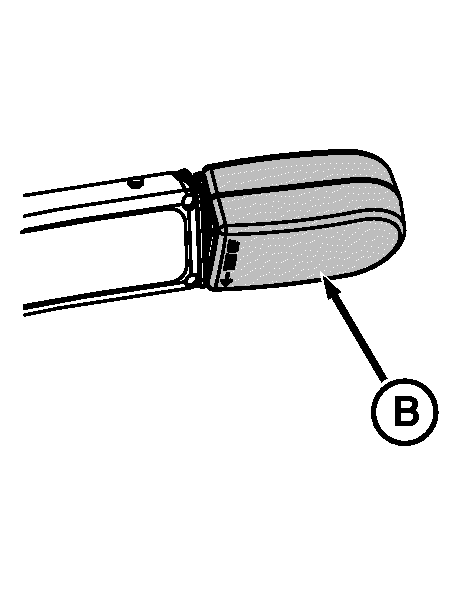

Remove Lens Cover

RXA0068526-UN-09SEP03

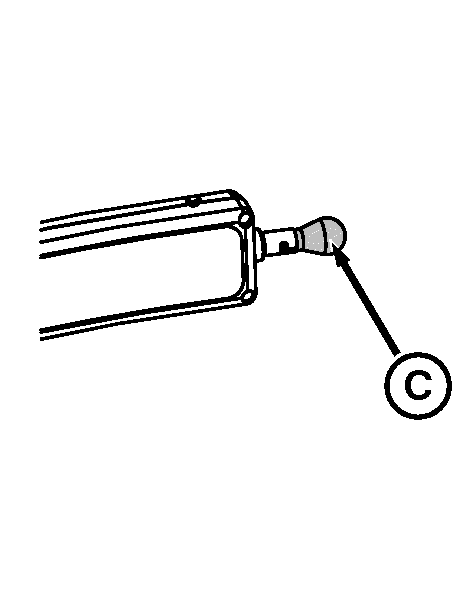

Remove Bulb

A - Screws

B - Lens Cover

C - Light Bulb

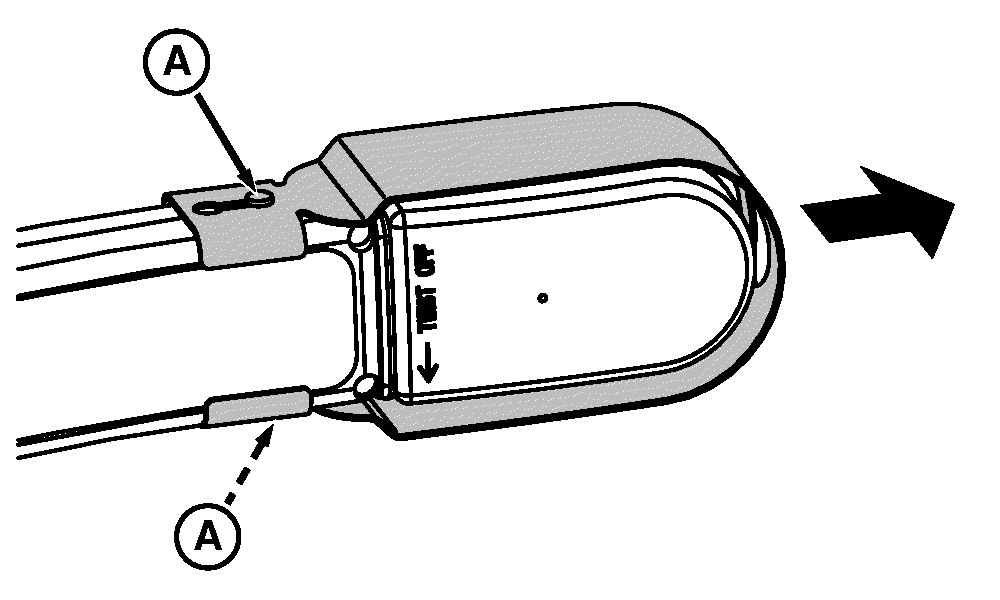

1. Loosen screws (A).

2. Slide shield away from lens cover to remove.

3. Turn lens cover (B) counterclockwise to remove light bulb (C).

4. Install new bulb in reverse order of removal
