Positioning Steps and Handrails

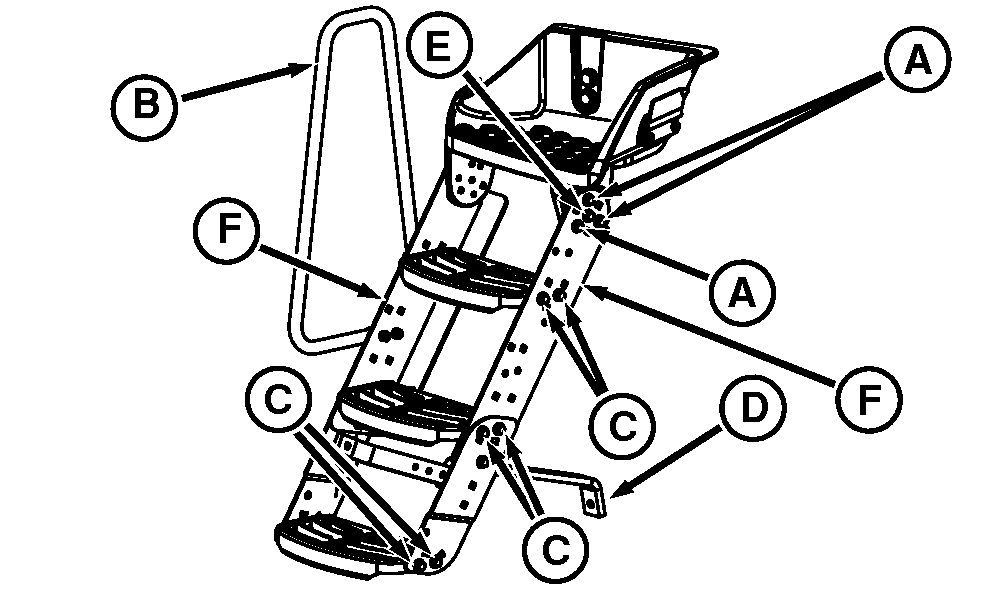

RXA0085751-UN-09JAN06

Wide Steps and Hand Rails

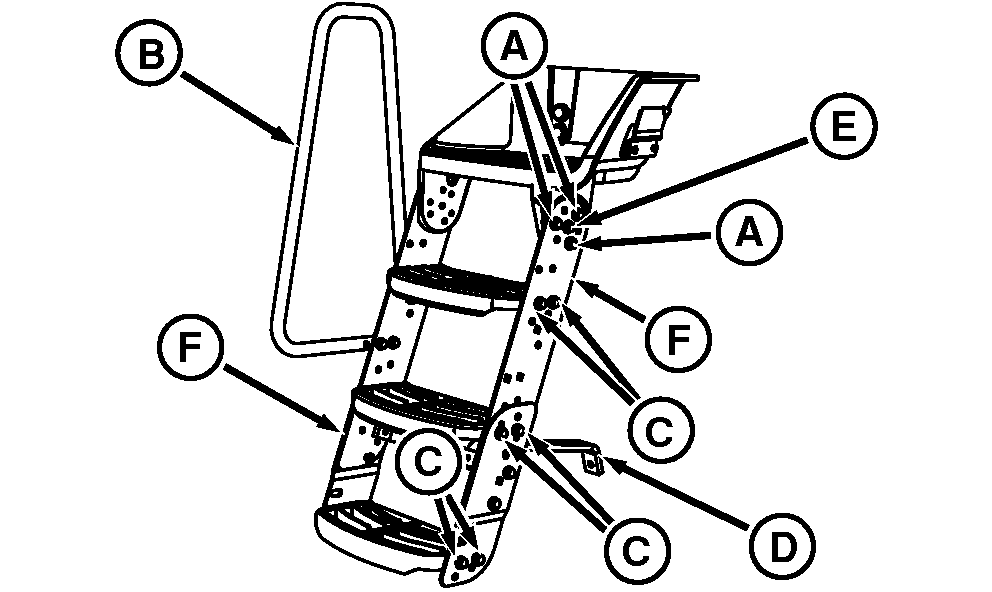

RXA0085753-UN-09JAN06

Narrow Steps and Hand Rails

A - Step Angle Bolts

B - Handrail

C - Step Positioning Bolts

D - Strap

E - Center Bolt

F - Side Panels

Steps

NOTE: Step assembly can be adjusted to either wide or narrow position. For wide positioned steps, use round holes in side panels (F) for individual step and handrail positioning. For narrow steps, use square holes in side panels.

Do not remove center bolt (E). Step assembly can pivot to new setting while attached with center bolt which makes it easier to align bolt holes.

Change step assembly angle by removing bolts (A). Using center bolt, pivot steps to new setting and install bolts.

Use step positioning bolt (C) to adjust individual steps to match step assembly angle.

Handrail

Handrail (B) must be positioned in conjunction with the steps.

Strap

Strap (D) is turned end for end when converting from one step setting to the other.

After correctly positioning steps, handrail and strap, tighten cap screws to torque.

Item	Measurement	Specification
Bolts	Torque	73 N·m (54 lb-ft)
