Independent Link Suspension Steering Stop Settings

RXA0085841-UN-11JAN06

RXA0085842-UN-11JAN06

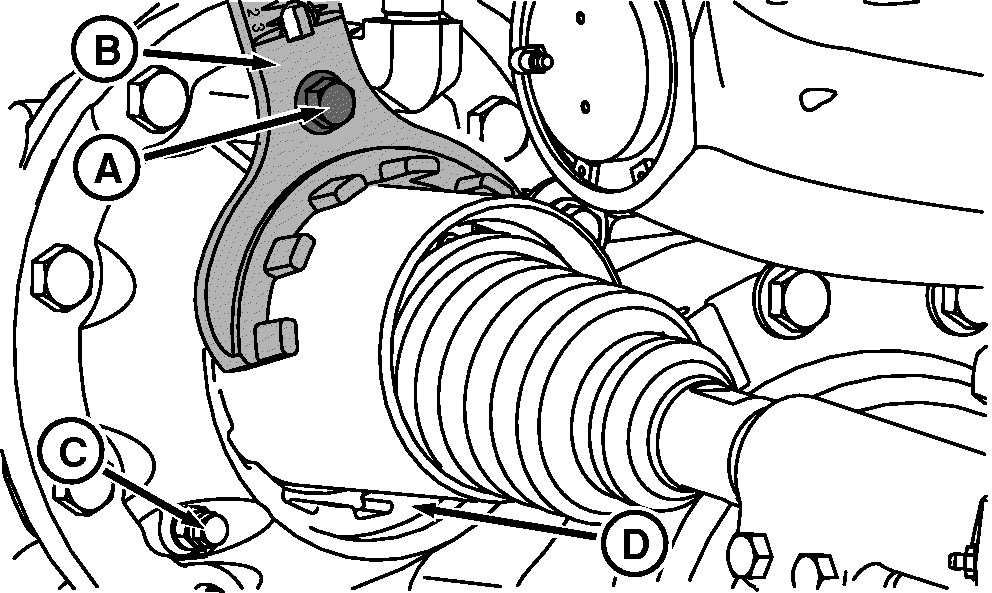

A - Retaining Cap Screw

B - Wrench

C - Bleed Screw

D - Rod Guide

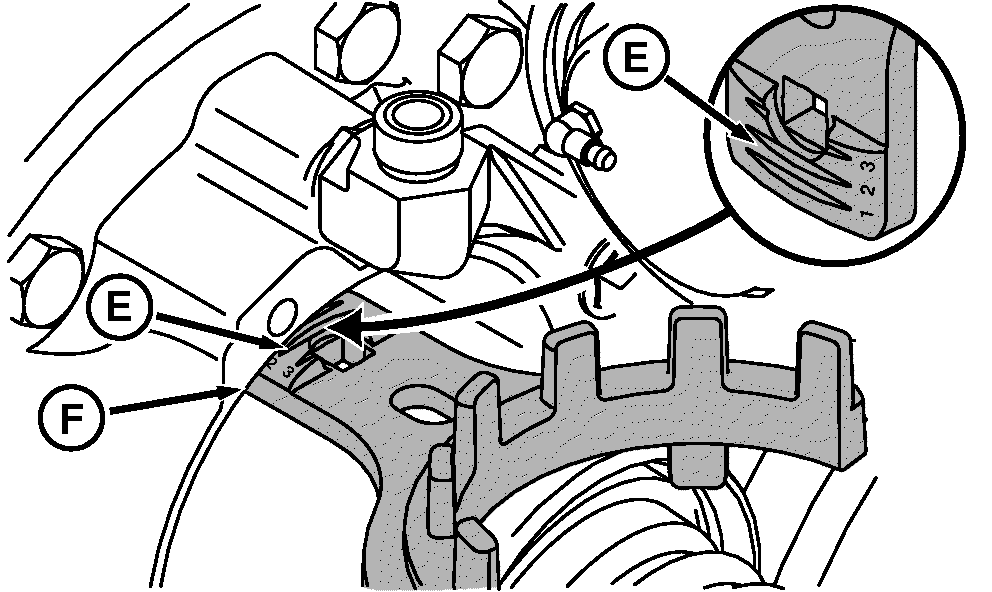

E - Steering Stop Position Marks

F - Outer Flange

CAUTION: For tractors equipped with front hitch, avoid possible personal injury and equipment damage. DO NOT use the front hitch to lift the tractor. Use correct lifting equipment.

1. Determine correct steering stop position for tire size and tread setting.

2. Remove cap screw (A) and wrench (B) on axle housing.

3. Loosen bleed screw (C) and jam nut.

4. NOTE: To check a steering stop position of zero, insert wrench as shown in right-hand illustration, the wrench will be flush with outer flange (F).

   Check current rod guide (D) position using position marks (E) on wrench.

5. Turn rod guide (D) using wrench (B) to adjust distance to correct steering position.

6. Adjust guide minimally to reinstall wrench and retaining cap screw (A).

   Item	Measurement	Specification
   Retaining Cap Screw	Torque	125 N˙m (90 lb-ft)

7. Tighten bleed screw (C) and jam nut.

   Item	Measurement	Specification
   Bleed Screw and Jam Nut
   Screw	Torque	40 N˙m (30 lb-ft)
   Jam Nut	Torque	15 N˙m (12 lb-ft)

8. Repeat procedure on opposite side of axle housing.

9. IMPORTANT: Settings allow 25 mm (1 in.) minimum clearance at maximum turn and full oscillation. Fenders may deflect against side frame during turn. Clearance and interference must be checked under full oscillation and full turn.

   Verify clearance by turning fully left then fully right.
