Determining Rim Type—Front Tires

RXA0085843-UN-11JAN06

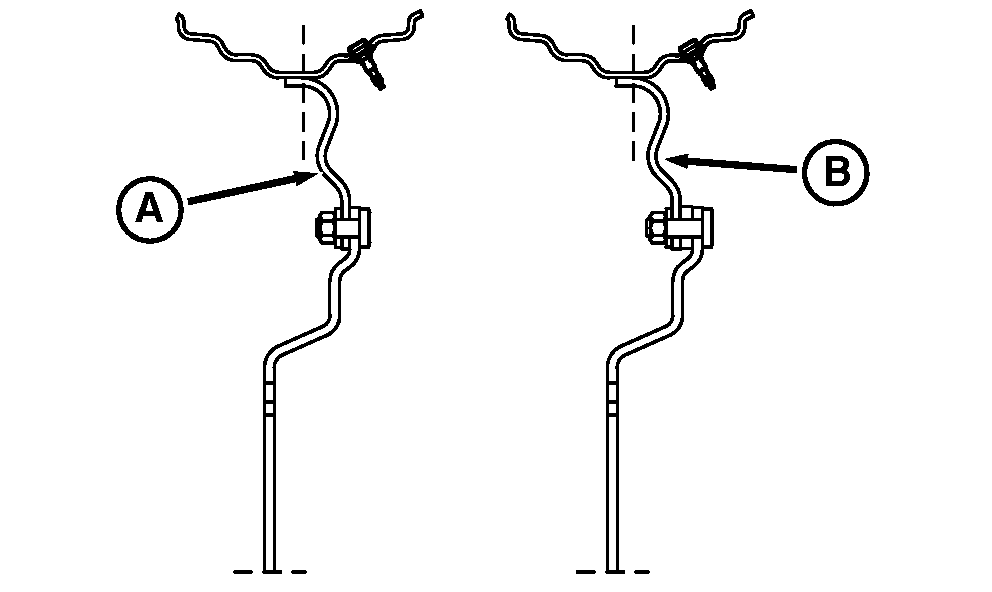

Identifying Rims

A - Eight Position Rim

B - Sixteen Position Rim

A sixteen position wheel can be identified by the use of a spacer in the rim to disk bolted joint. The spacer can be located either under the nut and washer or between the disk and rim flange.

NOTE: Eight position rim uses M16 hardware and sixteen position rim uses M22 hardware at the disk to rim flange joint. Torque specification for M16 hardware is 300 N·m (225 lb-ft) and 600 N·m (445 lb-ft) for M22 hardware.
