Using Front Hitch (If Equipped)

Lift Arm Storage and Operating Positions

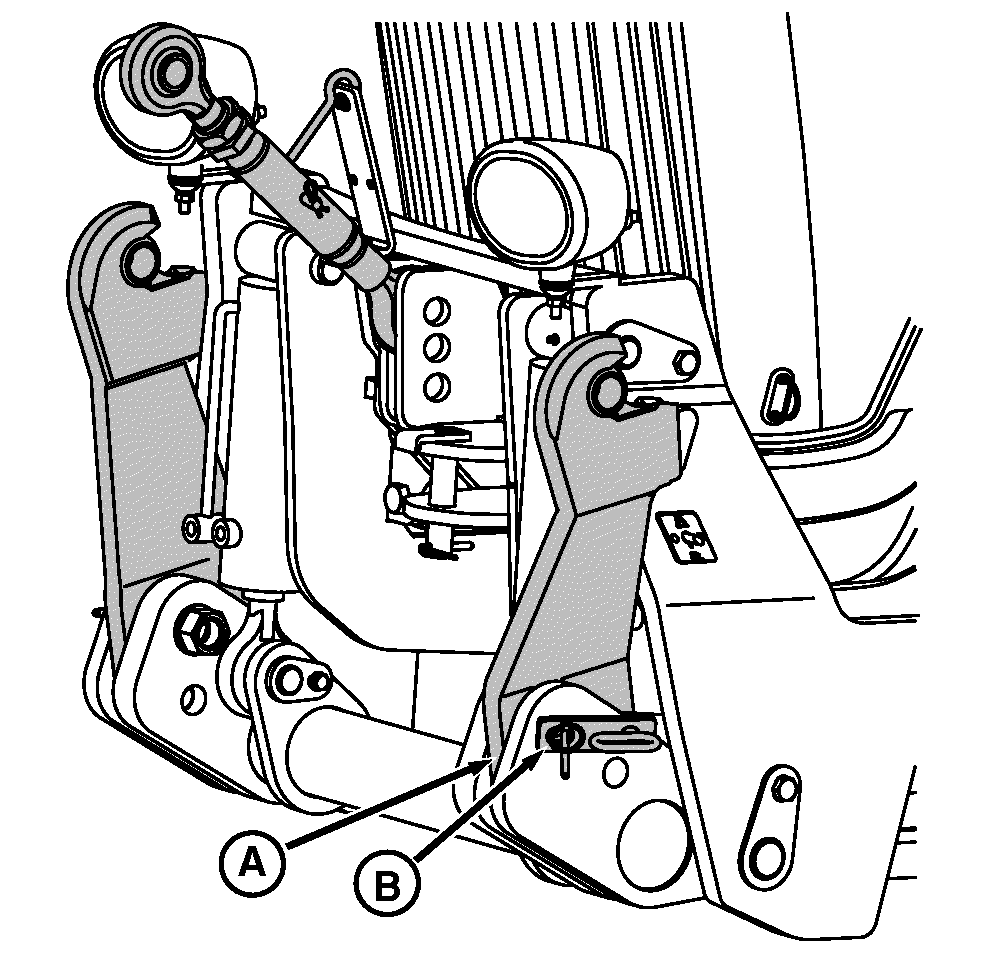

RXA0080755-UN-20MAY05

Storage Position

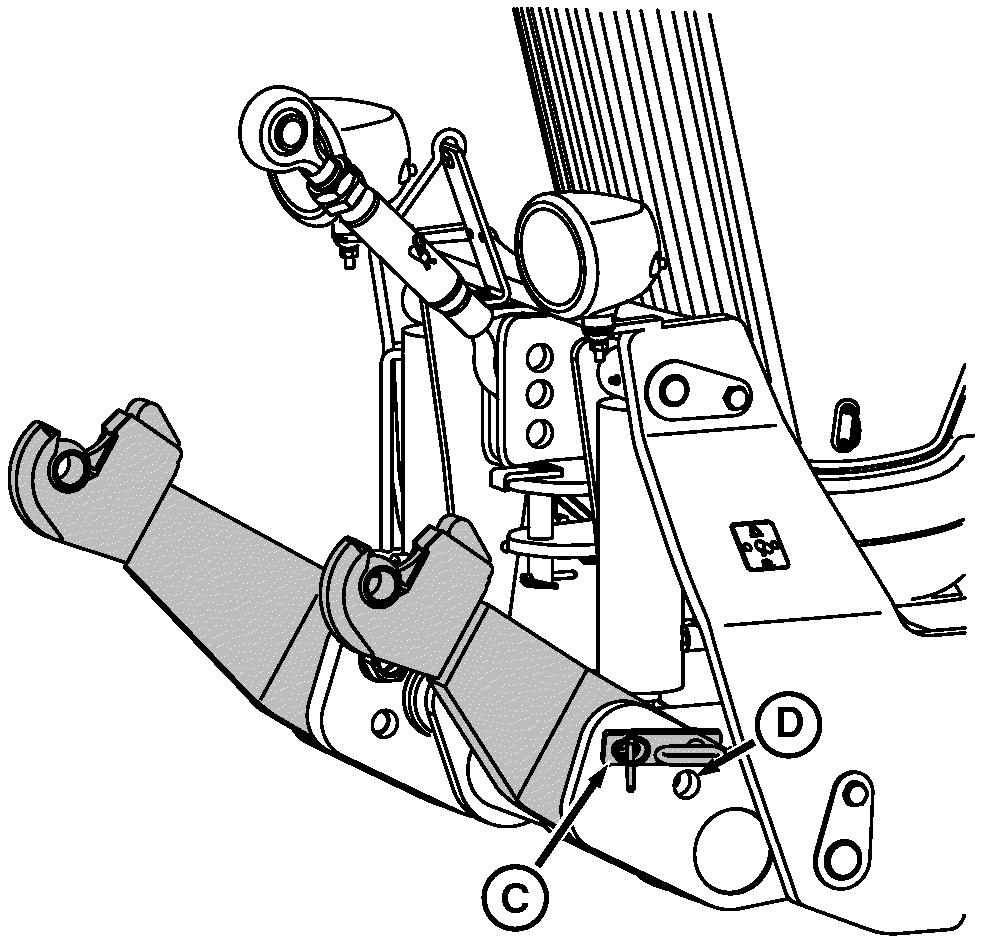

RXA0080754-UN-20MAY05

Operating Position

A - Lift Arm

B - Quick Lock Pin and Pin

C - Rigid Position

D - Float Position

1. Support lift arm (A) and remove quick lock pin and pin (B).

2. Lower lift arm to align holes with hitch frame for one of the following operations:

   • Position (C)—Rigid; Lift arms stable
   • Position (D)—Float; Allows lift arms/hitch to follow ground contours



3. Install pin and quick lock pin.

4. Repeat on opposite side.

To store lift arms, remove pins and raise lift arm into upright position. Install pin and quick lock pin in location (C).

Attaching and Detaching Implement to/from Hitch

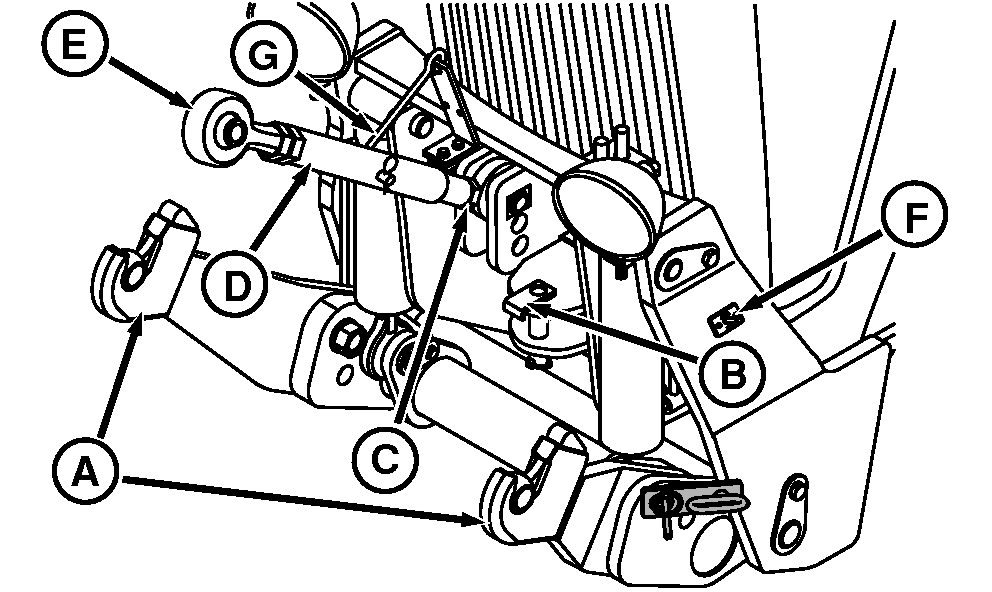

RXA0085786-UN-10JAN06

A - Lift Arms

B - Quick Lock Pin and Pin

C - Lock Nut

D - Center Link

E - Link End

F - Remote Hitch Switch

G - Retainer

1. CAUTION: Avoid possible personal injury and tractor damage. DO NOT use front hitch to lift tractor. Use correct lifting equipment.

   IMPORTANT: Avoid damage to equipment. Be sure load is balanced side-to-side and front-to-rear.

   Adjust implement attaching points. (See implement operator's manual.)

2. Lower lift arms (A) using remote hitch switch (F).

3. Position coupler ends of lift arms below implement link pins and slowly raise hitch until coupler ends lock on implement link pins.

4. NOTE: Keep center link in stored position when not in use.

   Remove retainer (G) from center link.

5. Loosen lock nut (C).

6. Hold link end (E) and turn center link (D) to adjust length. Tighten lock nut.

7. Remove quick lock pin and pin (B) from storage location and attach center link to implement.

Detach implement from hitch in reverse order of attaching.
