Using Auxiliary Heaters

CAUTION:

TS210
TS210-UN-23AUG88

RXA0078042
RXA0078042-UN-10NOV04

To avoid electrical shock or fire, use a 3-wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15 amp rating, suitable for outdoor use. Always plug electrical cord into an outlet protected by GFI (Ground Fault Interrupter).

Before connecting heater to power source, be sure that the element is immersed in coolant. NEVER energize heater in air. Doing so can cause element sheath to burst causing personal injury.

Optional auxiliary heaters available from your John Deere dealer:

  • Engine Coolant (1000 W)—-If Equipped1.
  • Transmission (200 W)—If Equipped1.
  • Hydraulic Charge Pump (200 W)—If Equipped1.

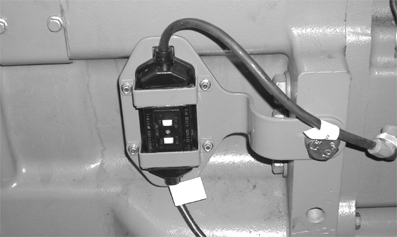

Connect the heaters and the ground fault interrupter to a ground fault protected 110-volt electrical outlet.

IMPORTANT: The ground fault interrupter on the tractor protects the tractor only, not the electrical wiring supplying power to the tractor. Test all ground fault interrupters before each use.

1 Includes a ground fault interrupter

OURX935,0000496-19-20080102
