1300 MFWD Axle Toe-In Adjustment

RW56646A-UN-22OCT99

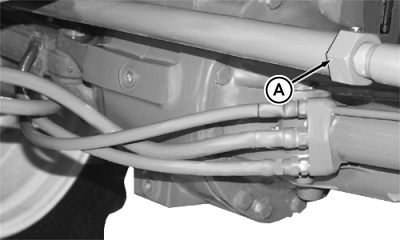

Loosen Jam Nuts

A - Jam Nut

1. Check to make sure axle is centered.

2. Loosen jam nuts (A) on both ends of the tie rod tube.

3. Rotate tube to lengthen or shorten tie rod, as needed to obtain toe-in or toe-out of less than 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

4. Tighten jam nuts (A) on both ends of tie rod tube.

   Item	Measurement	Specification
   Jam Nut
   Nut	Torque	200 N˙m (150 lb-ft)
