Replacing Cab Air Filters and Recirculation Filters

Recirculation Filter

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals. * Interval can vary according to operating conditions

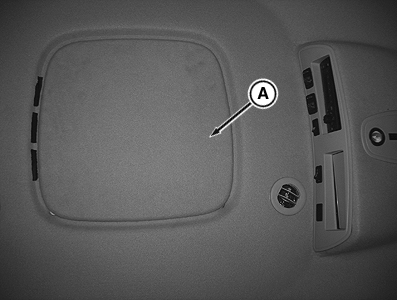

RXA0099070-UN-18SEP08

Remove Roof Upholstery

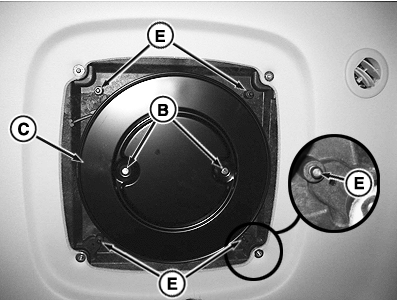

RXA0100957-UN-17MAR09

Remove Cover

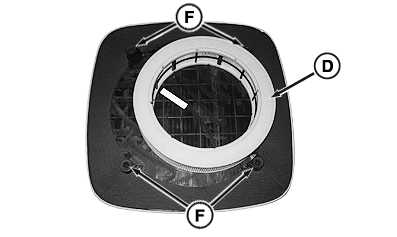

RXA0100959-UN-17MAR09

Remove Filter

A - Upholstery Cover

B - Fasteners

C - Cover

D - Filter

E - Ball Stud

F - Clip Nuts

1. Remove upholstery cover (A) in the headliner by grabbing outer edges and pulling down.

   NOTE: When removing fasteners (B), hold cover (C) in place with one hand.

2. Remove fasteners allowing cover to be lowered.

   NOTE: Using a clean cloth, wipe down inside and outside filter cover before installing new filter.

3. Remove and inspect condition of filter.

4. Replace filter (D) annually or when plugged or damaged.

5. Re-Install cover (C).

6. Re-install cover panel by lining up ball studs (E) with clip nuts (F) and pushing up.

Cab Fresh Air Filter

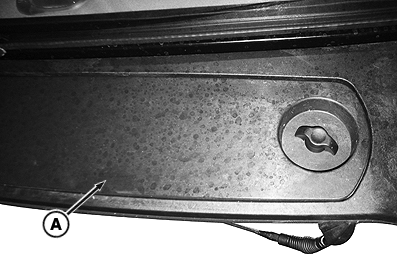

RXA0099137-UN-19SEP08

Let Cover Swing By Turning Knob

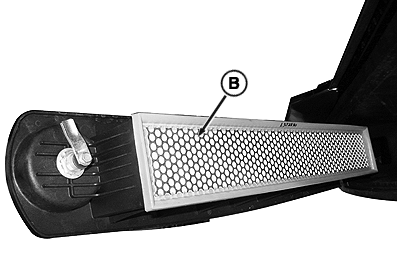

RXA0099139-UN-19SEP08

Remove Filter

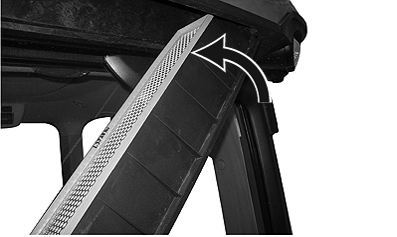

RXA0099699-UN-04NOV08

A - Cover

B - Knob

1. Support cover then turn knob allowing cover (A) to swing down.

2. Remove old filter (B).

3. Inspect condition of filter.

4. Replace filter annually or sooner when plugged or damaged.

   NOTE: Using a clean cloth, wipe down inside and outside filter cover before replacing old filter or installing new filter.

5. If required, Install new filter.

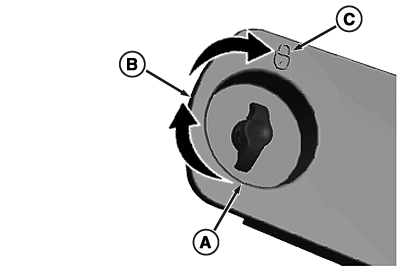

   NOTE: Filter cover has three positions; Open (A), latched (B) and locked (C).


   RXA0099848-UN-26NOV08

   Air Filter Cover

---




6. Close cover and turn knob 180° so that latch is locked.
