Configuring Tractor For GPS/Radar

Tractors equipped with radar must be re-configured if switching to GPS radio as the true ground speed input signal. To configure tractor:

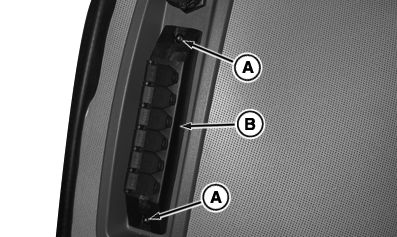

RXA0100215-UN-23JAN09

Remove Screw And Optional Power Strip

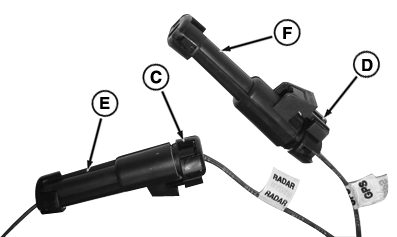

RXA0100213-UN-23JAN09

Configured Plugs For Radar

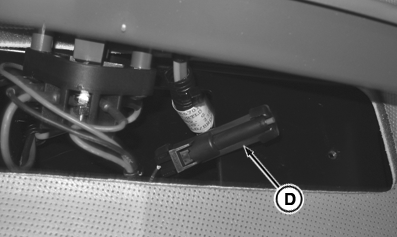

RXA0100217-UN-23JAN09

Remove Plug

A - Screws

B - Power Strip

C - Radar Plug

D - GPS Plug

E - Tractor Connector

F - Dust Cap

1. Remove screws (A) and power strip (B), if equipped or cover plate.
2. Inside right-hand console locate one wire lead marked ”GPS” and one marked ”Radar”.
3. Remove radar plug (C) from wiring connector (E).
4. Remove GPS plug (D) from dust cap (F).
5. Install GPS plug into connector and radar plug into dust cap.
6. Install power strip.

Tractors not equipped with radar, but wanting to add a GPS signal require two controller addresses to be changed. Contact your John Deere™ dealer for assistance.
