Connecting AutoTrac™ Assisted Steering System (If Equipped)

RXA0099413-UN-25FEB09

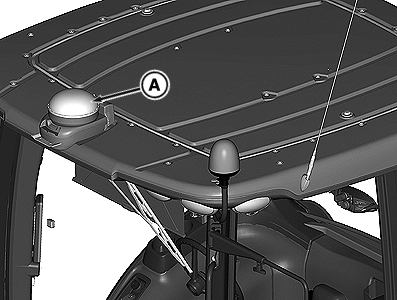

StarFire™ receiver

RXA0084304-UN-26SEP05

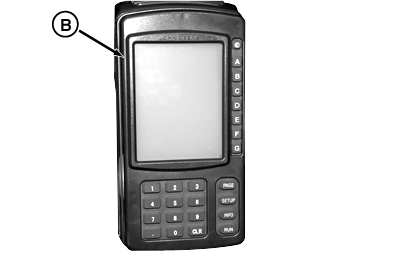

Original GreenStar Display With Mobile Processor

RXA0100708-UN-26FEB09

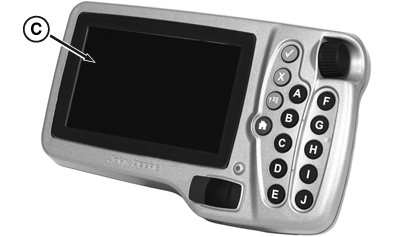

GreenStar Display 1800

RXA0084306-UN-26SEP05

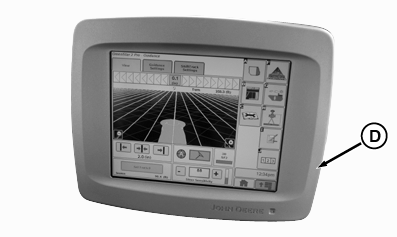

GreenStar Display 2600

A - Position Receiver

B - Original GreenStar Display With Mobile Processor

C - GreenStar Display 1800

D - GreenStar Display 2600

NOTE: Electro-hydraulic steering is required for AutoTrac to function.

Refer to AutoTrac Operator's Manual for detailed instructions.

• AutoTrac system utilizes Starfire position receiver (A) and GreenStar™ display (B), (C) or (D) to assist operator in steering tractor.
• Operator must turn vehicle at the end of each pass and to go around any field obstacles. Steering control is obtained by simply turning steering wheel.

NOTE: See your John Deere™ dealer for compatible adapter harnesses.
