MFWD Steering Stop Settings

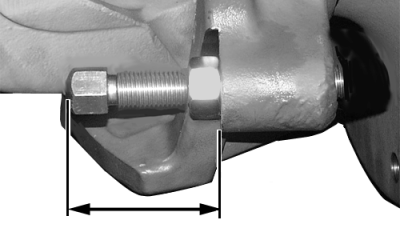

RW56647-UN-06OCT98

1. Adjust fenders before setting steering stop positions.

2. Select correct steering stop position for tire size and tread setting. See following chart.

3. Set steering stops to correct position as illustrated.

4. Tighten steering stop retaining bolts to 250 N˙m (185 lb-ft).

5. Turn wheel fully to the right. Impact knuckle housing to steering stop five times. Repeat for left side.

6. Retighten steering stop retaining bolts to 250 N˙m (185 lb-ft).

7. IMPORTANT: Settings allow 25 mm (1 in.) minimum clearance at maximum turn and full oscillation. Fenders may deflect against side frame during turn. Clearance and interference must be checked under full oscillation and full turn.

   Verify clearance by turning steering wheel fully to the left and then to the right.

   1300 MFWD STEERING STOP POSITIONS
   Position	Turn Angle	Bolt Length
   0	52°	43.6 mm (1.72 in.)
   1	47°	56.6 mm (2.23 in.)
   2	42°	69.6 mm (2.74 in.)
   3	37°	82.6 mm (3.25 in.)
   1500 MFWD STEERING STOP POSITIONS
   Position	Turn Angle	Bolt Length
   0	48°	42.5 mm (1.67 in.)
   1	44°	56.6 mm (2.22 in.)
   2	39	75.0 mm (2.95 in.)
   3	35°	89.3 mm (3.51 in.)
