Replacing Map Light

1.

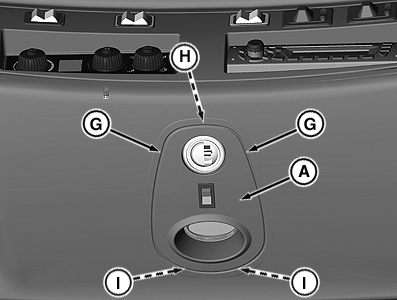

   RXA0099148-UN-18FEB09

   Carefully Pull Cover Down.

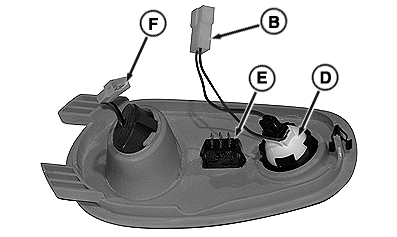

   RXA0099146-UN-18FEB09

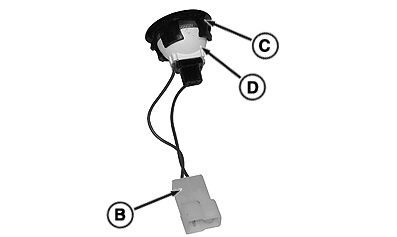

   RXA0099141-UN-19SEP08

   Remove Bulb From Retaining Ring

   A - Cover

   B - Map Light Connector

   C - Retaining Ring

   D - Bulb

   E - Plug

   F - Courtesy Light Connector

   G - Edges of Cover

   H - Front Clip

   I - Rear clips

   Carefully insert fingers under edges (G) of cover, then pull cover (A) down to expose bulbs.

---




2. Pull down on cover front disconnecting front clip (H).

3. Remove rear clips (I) by sliding cover toward cab center.

4. Disconnect plug (E), Courtesy Light connector (F), and Map light plug (B). Cover with bulb assembly is now free from cab roof.

5. Remove bulb (D) from retaining ring (C).

6. Install new bulb in retaining ring.

7. Snap retaining ring with bulb into cover.

8. Slide rear clips into roof.

9. Reconnect connectors (B and F), plug (E), then install rear clips before swinging cover front up and snapping front clip into place.
