Adjusting Air Suspension Seat

RXA0099794-UN-16DEC08

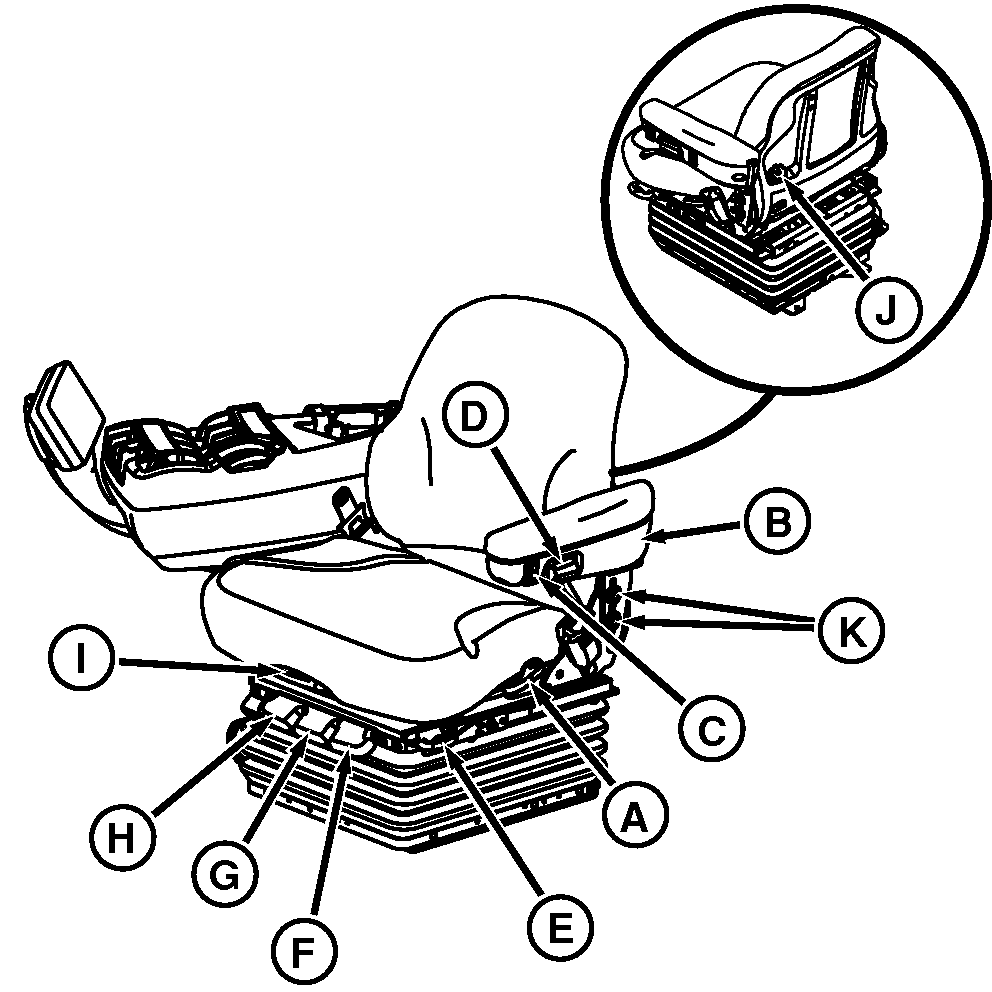

Seat With Fold-Down Armrest

A - Back Rest Tilt

B - Flip up Armrest

C - Height Adjustment

D - Armrest Tilt Adjustment

E - Fore-Aft Seat Adjustment

F - Fore-Aft Isolation

G - Lateral Isolation

H - Not Used With Air Seat

I - Seat Swivel

J - Lumbar Adjustment Knob

K - Back Rest Height Adjustment

Flip Up Armrest (B) - Can be flipped up out of the way.

Height Adjustment (C) - Turn key to ”ON”. Press lower portion of switch to lower seat or press upper portion of switch to raise seat.

Tilt Adjustment Knob (D) - Turn knob to adjust armrest angle.

Fore Aft Adjustment Handle (E) - Allows entire seat assembly to forward or backward.

Fore-Aft Isolation Handle (F) - Push down on handle to allow operator seat to slide forward or backward. Pull up on handle to lock seat in place.

Lateral Isolation Handle (G) - Push down on handle to unlock lateral seat suspension. Pull up on handle to lock seat in position.

Adjustment Damper (H) - Reserved for Active Seat™ Only.

Seat Swivel (I) - Lift up on handle to allow seat to swivel. Push down on handle to lock seat in position.

Lumbar Adjustment Knob (J) - Turn clockwise to add support to lower back. Turn counterclockwise to lessen resistance to lower back.

Back Rest Adjustment (K) - Loosen cap screws to slide seat back up or down. Retighten cap screws.
