Installing GreenStar™ System Components

IMPORTANT: This vehicle employs one or more CAN bus networks. Connecting unapproved devices to vehicle network (s) may cause machine to degrade in performance or fail to perform properly. Further, unapproved devices should not be connected to implement network (ISOBUS) that attempt control of tractor functions.

RXA0104665-UN-10SEP09

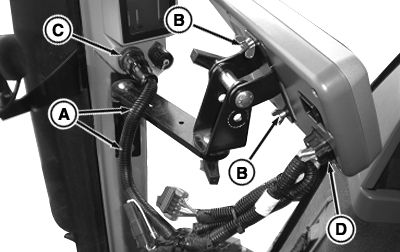

Attach Bracket To Corner Post Mount

RXA0099725-UN-10SEP09

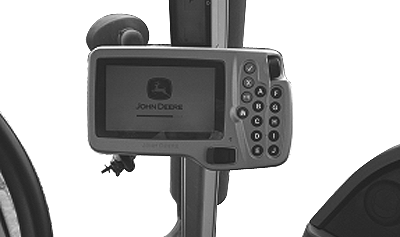

GreenStar Display Front View

RXA0099726-UN-06MAR09

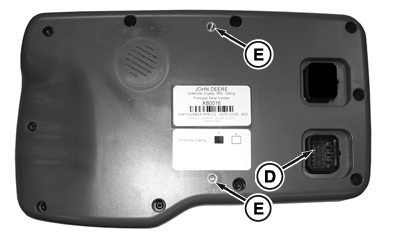

GreenStar Display Back View

RXA0104666-UN-10SEP09

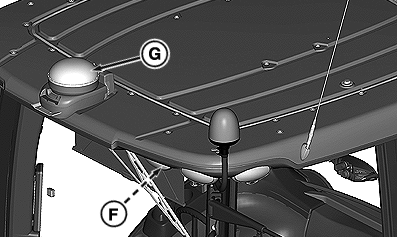

Connect StarFire Receiver

A - Corner Post Mounts

B - Wing Nuts (2 Used)

C - GreenStar Corner Post Connector

D - GreenStar Display Connector

E - Bracket Mounting Points (2 M6 Cap Screws Used)

F - StarFire™ Receiver Connector

G - StarFire Connector

1. Attach bracket to corner post mounts (A).

2. Attach display to bracket using wing nuts (B) (provided with display).

3. Attach harness to corner post connector (C) and lower GreenStar display connector (D) on back of the display.

4. Position display so that it is comfortable to reach and does not obstruct your view.

5. Connect StarFire™connector (B) to Starfire receiver (A).

   NOTE: See your John Deere™ dealer for compatible adapter harnesses.
