Using Instructional Seat

RXA0099739-UN-07NOV08

Instructional Seat

RXA0099788-UN-19NOV08

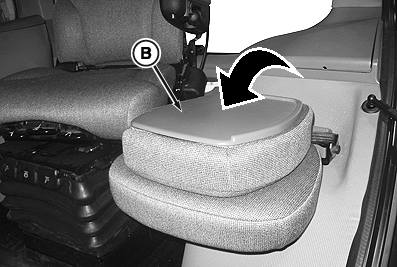

Instructional Seat Converted To Writing Surface

RXA0099980-UN-12DEC08

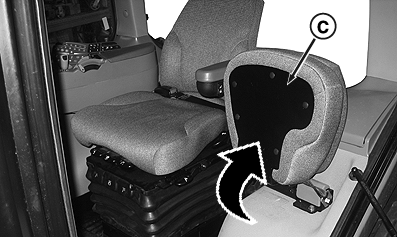

Instructional Seat Folded Up For Easier Egress

A - Seat Belt

B - Writing Surface

C - Flip Up Seat

CAUTION: This instructional seat has been provided only for training operators or diagnosing machine problems. Keep all other riders off the tractor and equipment. Always wear seat belts (A).

Instructional seat back tilts forward to be used as a writing surface (B). Flip up seat (C) tilts up allowing easier entrance and egress.
