Independent Link Suspension Toe-In Adjustment

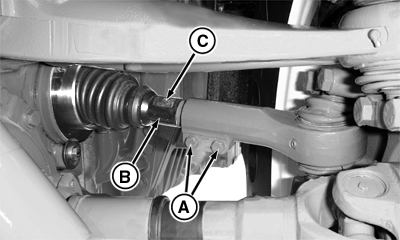

RXA0056534-UN-18OCT01

CAUTION: For tractors equipped with front hitch, avoid possible personal injury and equipment damage. DO NOT use the front hitch to lift the tractor. Use correct lifting equipment.

1. Check to make sure axle is centered.

2. Loosen clamp bolts (A) on both tie rods.

3. Rotate inboard pin (B) using the wrench flats (C). One full revolution of both pins changes toe-in approximately 20 mm (0.79 in.).

4. Tighten clamp bolts (A) on both tie rods.

   Item	Measurement	Specification
   Clamp Bolt
   Bolt	Torque	125 N˙m (90 lb-ft)
