Two-Wheel Drive Front Axle Adjustment

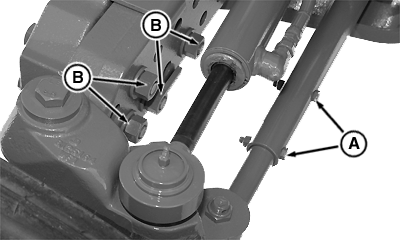

RXA0056632-UN-31AUG01

A - Tie Rod Bolts

B - Axle Bolts

IMPORTANT: Do not put jack under engine oil pan.

1. Raise front end of tractor.

2. Remove bolts (A) from tie rod and bolts (B) from axle.

3. Slide axle knee to desired position and tighten bolts (B).

   Item	Measurement	Specification
   Front Axle Bolts
   Bolt	Torque	600 N˙m (445 lb-ft)

4. Install bolts in tie rod (A) making sure tie rod is changed same amount as axle.

5. Adjust other side using the same procedure. Both sides should normally have the same spacing.

6. Check toe-in and adjust as required.
