Two-Wheel Drive Front Axle and Wheel Bolt Tightening

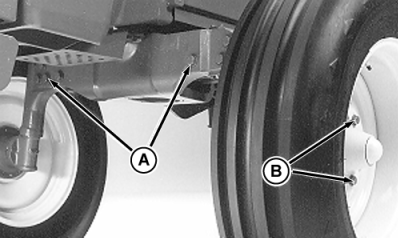

RW55246A-UN-22OCT99

A - Axle Bolts

B - Wheel Bolts

CAUTION: Avoid the possibility of personal injury. Never operate the tractor with loose wheel bolts. Wheel bolts are critical and require retightening.

Tighten axle bolts (A) and wheel bolts (B) to specification.

Item	Measurement	Specification
Axle and Wheel Bolts
Axle Bolts	Torque	600 N˙m (445 lb-ft)
Wheel-to-Hub	Torque	310 N˙m (230 lb-ft)

Drive tractor about 100 meters (110 yd), and retighten wheel-to-hub bolts.

Retighten bolts after working 3 HOURS and again after 10 HOURS.

Tighten bolts DAILY for the first week of operation.
