Two-Wheel Drive Front Axle Toe-In Check

RXA0062569
RXA0062569-UN-18SEP02

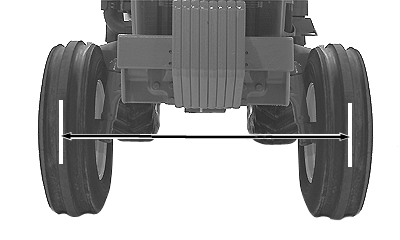

  1. Measure distance between tires at hub level in front of axle. Mark the point that is measured.

  2. Move tractor back about 1 m (3 ft), so mark is at hub level behind the axle. Again measure distance between tires, at same point on tire.

    Front measurement should be 3—9 mm (1/8—3/8 in.) less than rear measurement.

OURX935,0000675-19-20080103
