Two-Wheel Drive Front Axle Tread Setting
RXA0056631-UN-31AUG01

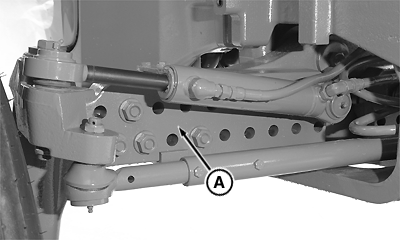

A - Front Axle
Front axles (A) have seven standard tread settings.
|
Tire Size |
Valve Stem Location |
Axle Position |
||||||
|---|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
||
|
11.00-24 |
Out |
1525 mm (60 in.) |
1625 mm (64 in.) |
1725 mm (68 in.) |
1830 mm (72 in.) |
1930 mm (76 in.) |
2030 mm (80 in.) |
2135 mm (84 in.) |
|
In |
1625 mm (64 in.) |
1725 mm (68 in.) |
1830 mm (72 in.) |
1930 mm (76 in.) |
2030 mm (80 in.) |
2135 mm (84 in.) |
2235 mm (88 in.) |
|
|
16.5L-16.1 |
Out |
1660 mm (65.5 in.) |
1760 mm (69.5 in.) |
1865 mm (73.5 in.) |
1965 mm (77.5 in.) |
2065 mm (81.5 in.) |
2170 mm (85.5 in.) |
2270 mm (89.5 in.) |
|
