TouchSet™Scraper Control—for Scrapers Equipped with Scraper Control Unit

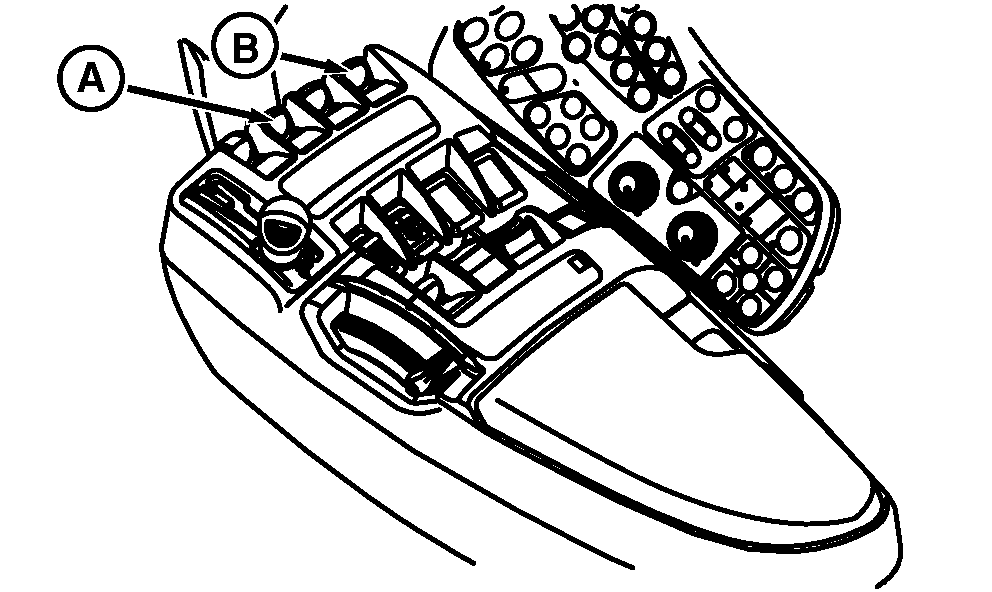

RXA0099925-UN-04DEC08

A - SCV I Control Lever

B - SCV III Control Lever

NOTE: To configure SCV page, See Using TouchSet Depth Controls in this section.

CAUTION: Avoid personal injury or death. Moving scraper control unit, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valve (SCV I and/or SCV III) are used to electronically control raising, lowering, and setting of implement depth, without leaving the cab. (Used primarily in areas requiring automated laser guidance system for scraper applications.)

Control lever (A) is used to manually control SCV I and activate an automatic scraper control system.

Control lever (B) is used to manually control SCV III and activate a second automatic scraper control system.
