Drive Rim to Cast Wheel Installation

RXA0056891-UN-11SEP01

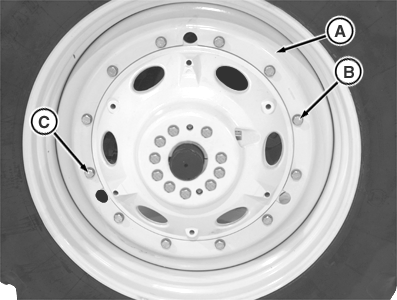

Heavy Duty Cast Wheel Shown

A - Wheel Rim

B - Tight Fit Hole

C - Slot Fit Hole

CAUTION: Avoid the possibility of personal injury. Failure to follow torquing sequence and procedure will result in damage to equipment and may result in personal injury. Wheel bolts are critical and require repeated torquing.

NOTE: The wheel rim (A) has one tight fit hole smaller than the other holes and one slot fit hole 180° from the tight fit hole for improved wheel centering.

Install and hand tighten bolt in the tight fit hole (B).

Install and hand tighten bolt in the slot fit hole (C).

Install and hand tighten remaining bolts.

Using a star shaped pattern, torque all bolts as needed to maintain torque.

Item	Measurement	Specification
All Bolts	Torque	600 N˙m (445 lb-ft)

Drive tractor 100 meters (110 yd) and torque bolts.

Torque again at 3 HOURS, 10 HOURS, and DAILY for the first week of operation.
