SCV Lever—Retract and Retract Detent Position

Retract Position

RXA0101981-UN-08APR09

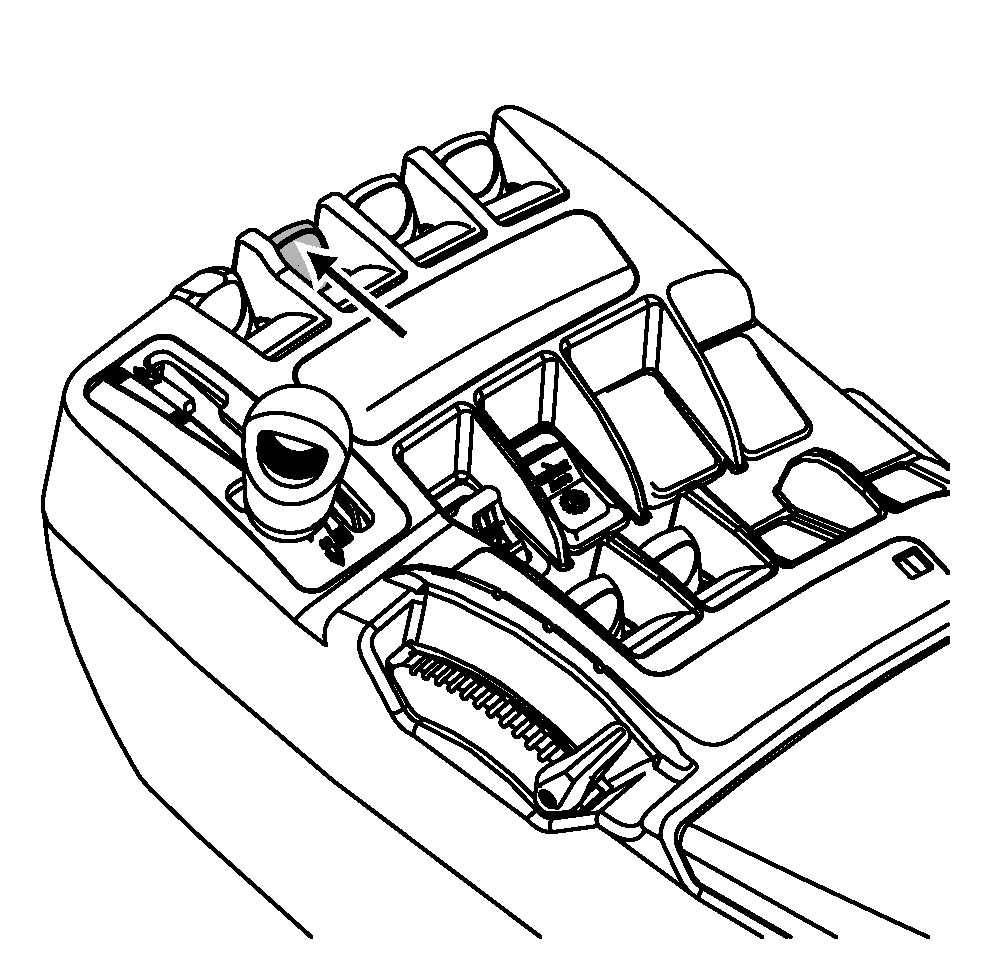

Push lever slightly forward of neutral. This slowly retracts cylinder at a variable flow rate. (See Adjusting SCV Flow Rate in this section.) Lever returns to neutral and flow stops when released.

Push the lever forward to the first detent notch to retract the remote cylinder at maximum rate.

NOTE: Time setting is ignored in retract position.

Retract Detent Position

Push lever forward to "click" detent position and release. Lever will return to neutral position, but flow will continue at rate. (See Adjusting SCV Flow Rate and Adjusting Timed Detent in this section.)

Flow timing begins when SCV lever is first moved into detent. SCV flow time should be adjusted so cylinder will be fully retracted when time has elapsed.

Detent can be cancelled by moving SCV lever slightly forward or rearward from neutral after lever has returned to neutral or by holding lever in retract position for more than 0.8 seconds after lever is released from detent.

NOTE: Detent positions are ignored at start up until lever is cycled to NEUTRAL.
