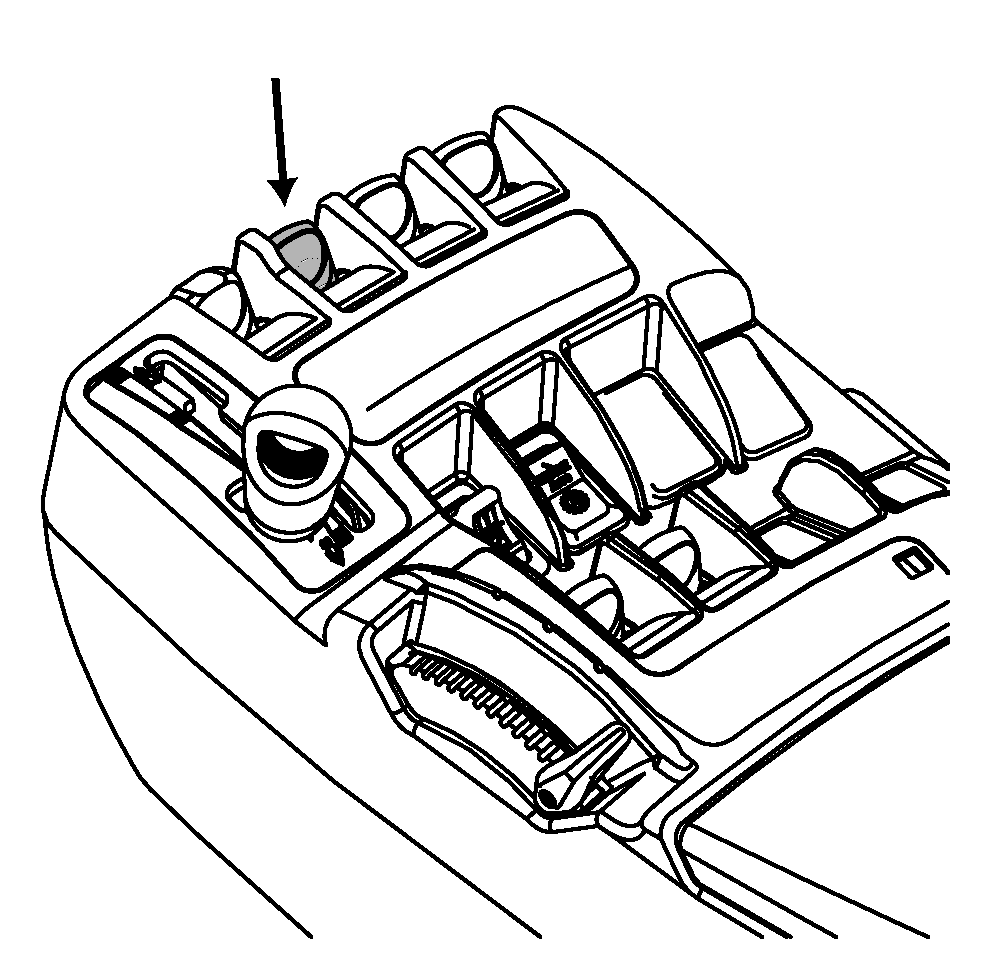

SCV Lever—Float Position

RXA0101982-UN-08APR09

Push SCV lever all the way forward and down to lock in float position. Lever and SCV will remain in float position until lever is manually returned to neutral. Cylinder is free to extend or retract, letting implement follow ground contour.

NOTE: Time setting is ignored in Float position.

If lever is in float position at engine start up, float function will operate if lever was moved to float position at least 10 seconds before engine was stopped and had not moved out of float position. If lever was not operated in this manner, float function will be disabled until lever is cycled to neutral.

Cycle cylinder fully in both directions after being used in the float position to insure cylinder is filled with oil.
