Using QUIK-TATCH Weights

RXA0080126-UN-06APR05

RXA0080127-UN-06APR05

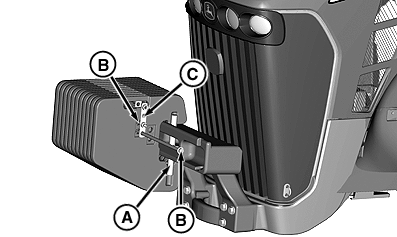

A - Center

B - Retaining Bolts

C - Retainer with Hole Up

Up to 22 QUIK-TATCH weights can be installed on tractors.

Install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

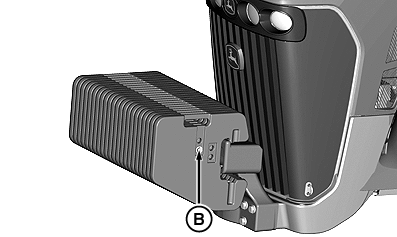

Run retaining bolts (B) through holes and secure with a nut to hold six weights or fewer in position. Tighten bolts.

Item	Measurement	Specification
Weight Attaching Bolts
Bolt	Torque	230 N˙m (170 lb-ft)

Insert retainers between weights, one with threaded hole upward (C) and the other with threaded hole downward when eight or more weights are installed. Tighten bolts.

Item	Measurement	Specification
Weight Attaching Bolts
Bolt	Torque	230 N˙m (170 lb-ft)
