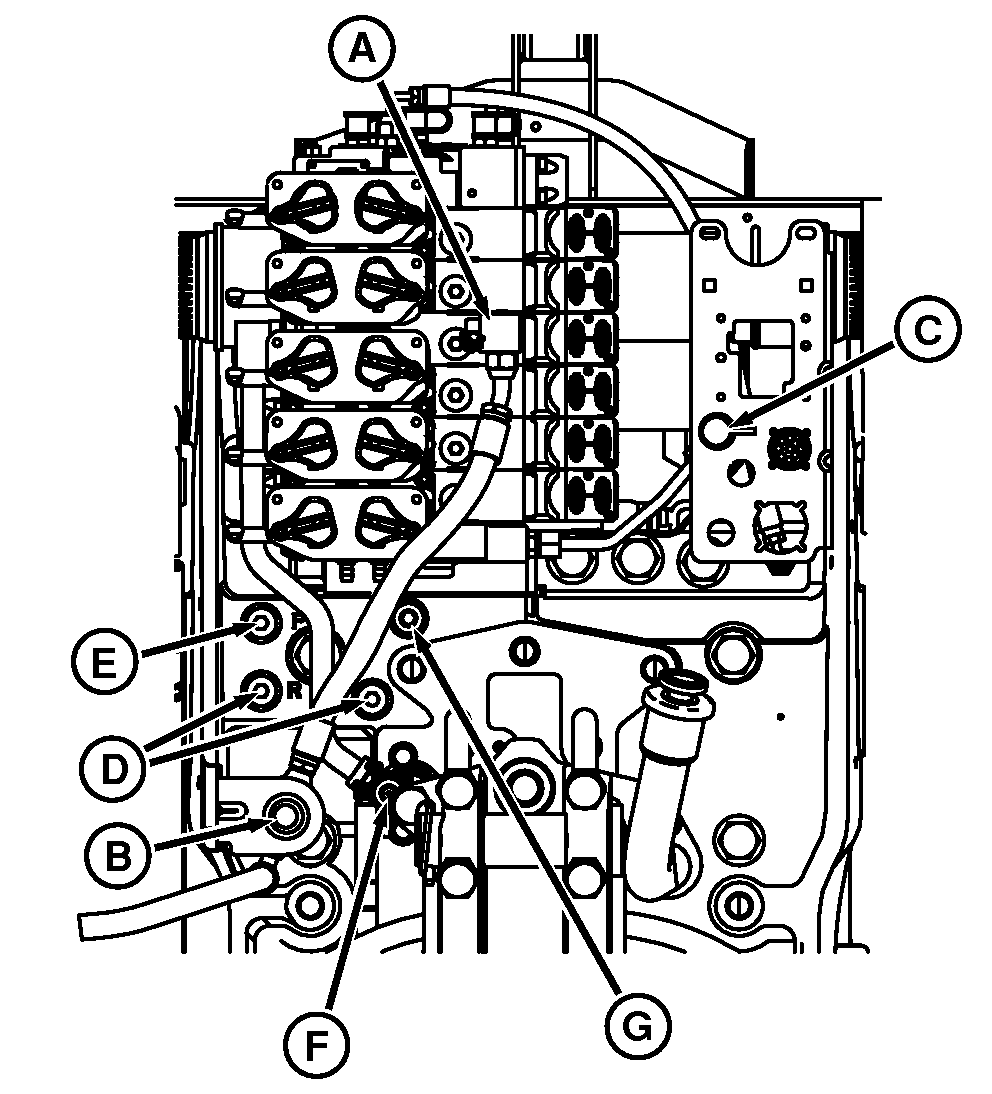

Hydraulic Component Identification
RXA0096590-UN-13AUG08
A - Hitch Valve
B - Auxiliary Hitch Valve Port (If Equipped)1
C - Power Beyond Load-Sense Coupler (If Equipped)
D - Return Ports
E - Pressure Port (Primary)
F - Drain Port (To Sump)
G - Pressure Port (Limited Access)
|
1 Field installed kit available through your John
Deere dealer.
|
OURX935,0000851-19-20090122 |
