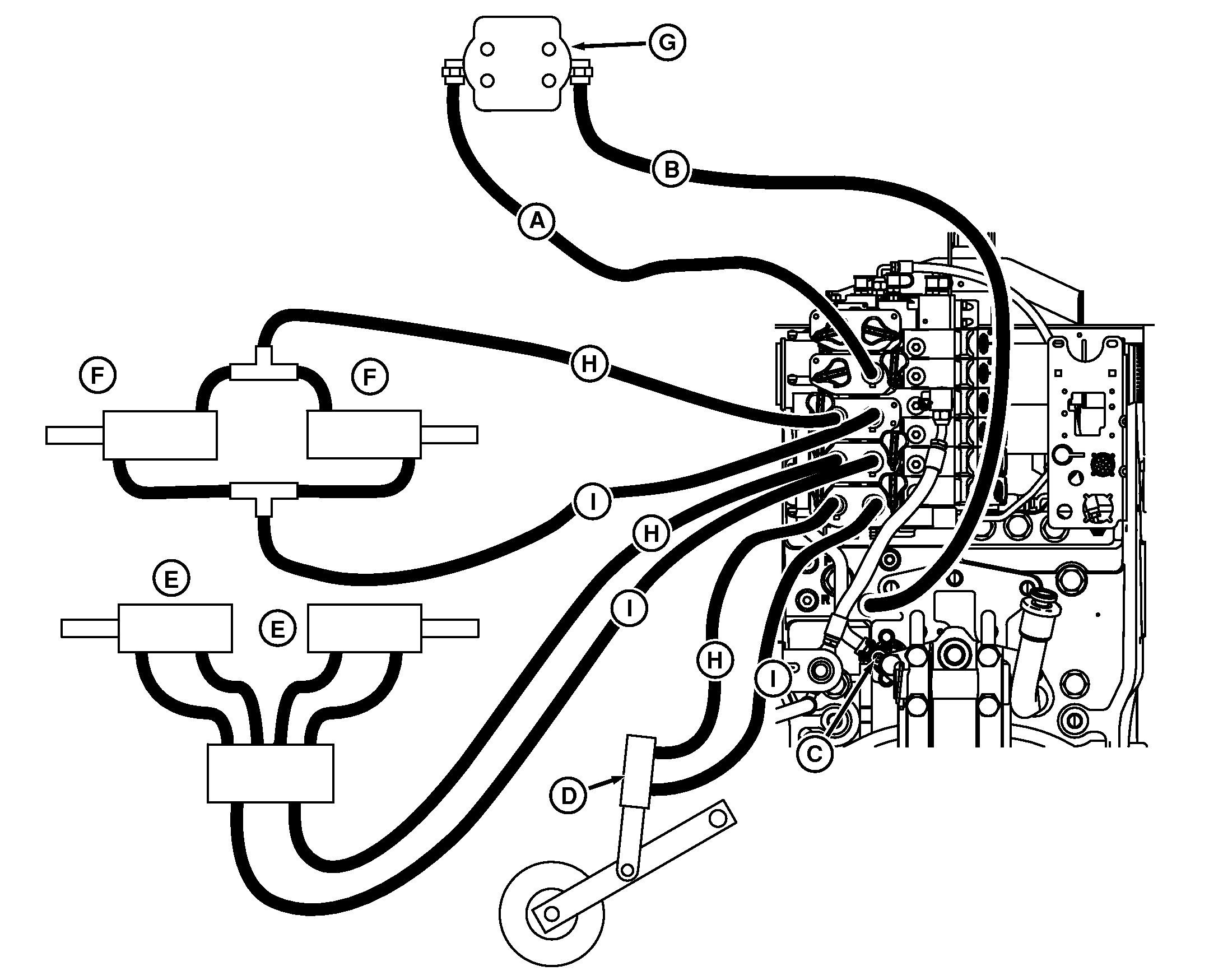

Implement Connection, Example 3—Closed Center Valve with Pump at High Pressure

RXA0096595-UN-13AUG08

A - Pressure Line

B - Return Line

C - Drain Port To Sump

D - Raise/Lower cylinder

E - Markers

F - Fold

G - Hydraulic Motor

H - Extend Coupler Line

I - Retract Coupler Line

In this application motor (G) receives pressure oil from the retract port on SCV. Return oil is routed to power beyond return port. When the motor is shut off, the SCV lever is moved to float position to allow motor to coast to a stop. Moving lever to neutral can cause motor to stop abruptly and may damage seals. Since return oil is routed to power beyond return port, no special hose tip is required.
