Using Hydraulic Motor Return

RXA0085801-UN-10JAN06

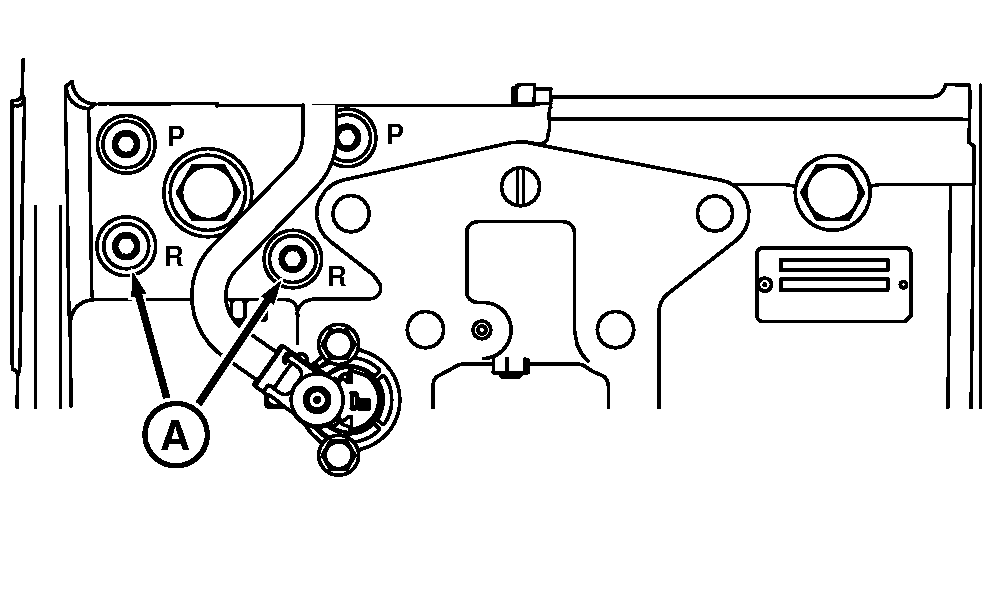

A - Return Port Plug

Hydraulic motor return kit provides a convenient port to access the tractor low pressure return circuit.

Remove one of the two return port plugs (A) and install hydraulic motor return coupler. If routing two return lines through a single coupler results in excessive return line pressure, install an additional connector in the second return port. Always make sure hose end and coupler are clean.

Using the motor return coupler will prevent:

• Inadvertent reverse operation
• Pressurization of auxiliary function return line
• Potential flow checking of the return-side SCV coupling

NOTE: Motors without overrunning check valves should be connected to the motor return coupler to prevent return line pressurization when SCV is returned to neutral.
