Using Hydraulic Motor Case Drain (Sump)

RXA0085802-UN-10JAN06

A - Plug

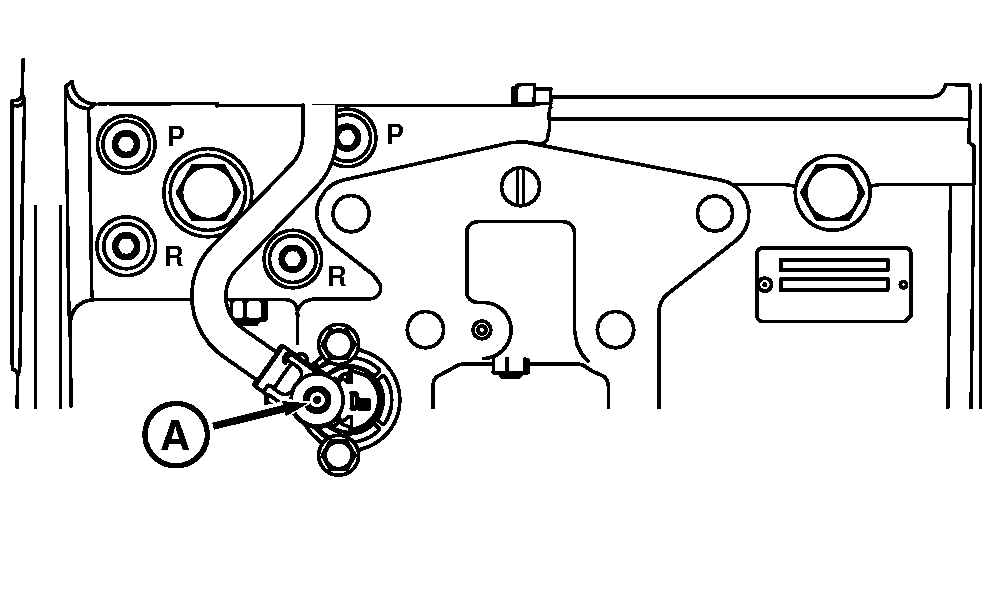

Remove plug (A) and install a hydraulic sump coupler available from your John Deere™ Dealer. Connect motor case or seal drain hose to coupler, making sure hose end and coupler are clean.

Allows oil to drain directly to reservoir (differential case) from hydraulic motor, by-passing remote coupler, SCV and filter.

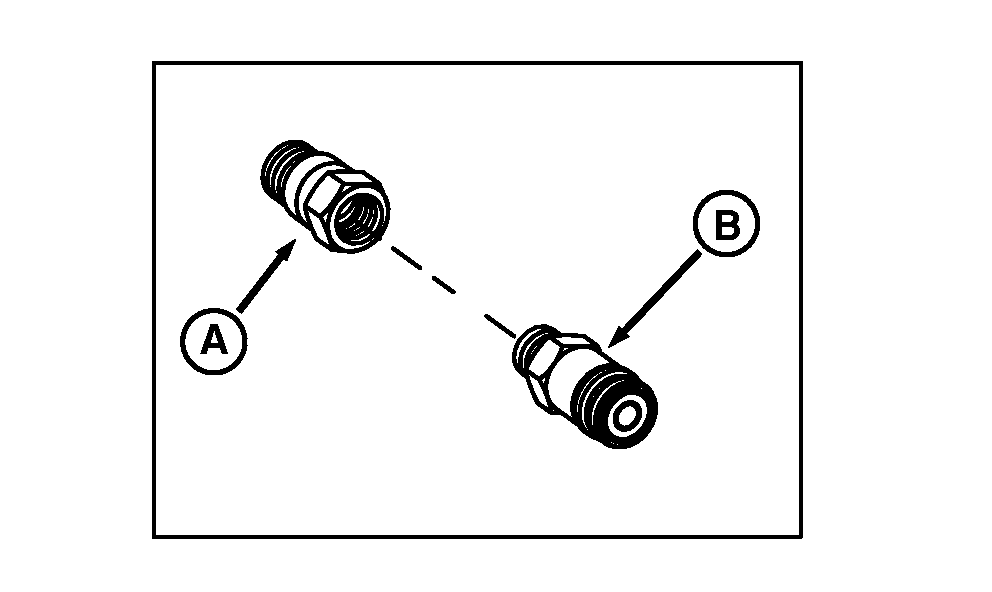

NOTE: Couplers may vary depending on equipment. Older equipment uses a standard coupler while newer seeding equipment may require a Flush Face coupler (B) and adapter (A) for the drain.

RXA0082406-UN-25JUL05

A - Adapter

B - Flush Face Coupler
