Using Seven-Terminal Outlet

RXA0085739-UN-06JAN06

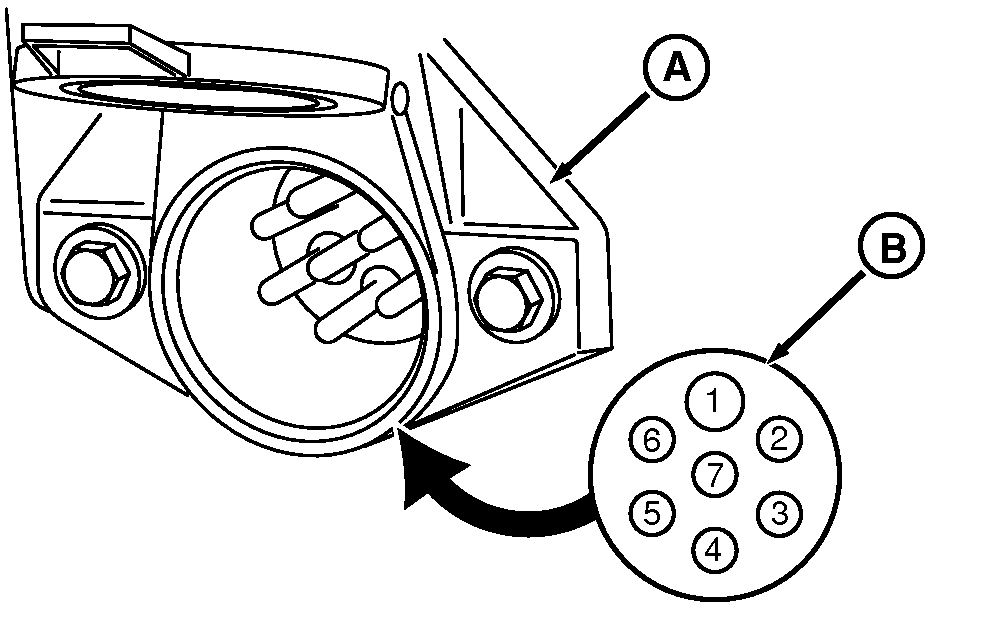

A - Seven Terminal Outlet

B - Terminal Numbers

Seven Terminal Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.

Solid state circuits are rated for a fixed value. If any additional electrical devices need to be added to the tractor, we recommend a power strip or convenience outlets should be used in conjunction with an off/on switch. Splicing into a wire in the wrong location could cause the circuit to overload and shut the circuit down.

If extra implement lights and controls, such as switches are needed, contact your John Deere™ dealer. Your dealer can provide information on methods to tie in the light switch with one of the accessory wires located in the Seven Terminal Outlet on the back of the tractor.

NOTE: Matching plug is available through your John Deere dealer.

Terminal Numbers (B)	Function
1	Ground
2	Flood
3	Left Turn Signal
4	Brake Lights
5	Right Turn Signal
6	Tail Light
7	Accessory
