Using Telescoping Heated Electric Mirror (If Equipped)

RXA0098963-UN-26FEB09

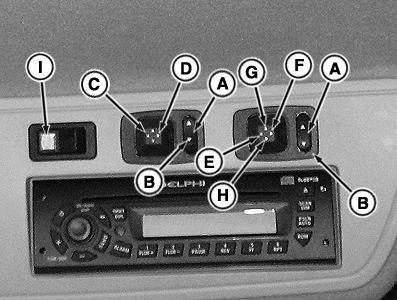

Rear View Mirror Switch

RXA0100486-UN-06MAR09

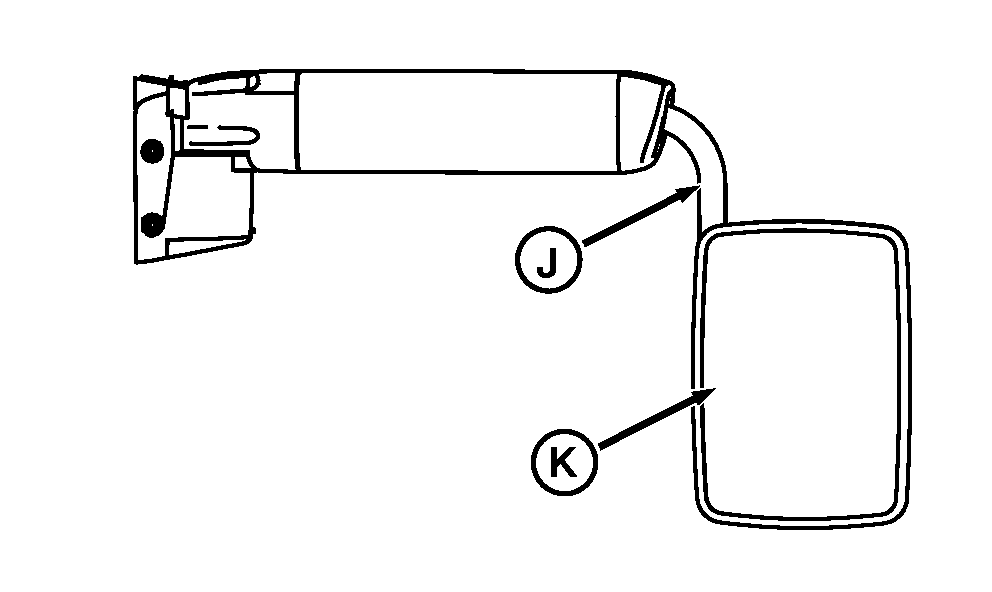

Telescoping Electrical Rear View Mirror (Right-Hand Side Shown)

A - Selection Switch—Right Mirror

B - Selection Switch—Left Mirror

C - Extend

D - Retract

E - Angle Left

F - Angle Right

G - Tilt— Up

H - Tilt—Down

I - Heating Switch

J - Telescoping Arm

K - Mirror

1. Push selection switch (A) for left mirror or switch (B) to control right mirror.

2. Push adjustment switch (C) to extend mirrors or (D) to retract mirrors. Both mirrors can extend/retract depending on which way toggle switch is flipped (A or B).

3. Push switch (G) to tilt mirror up or switch (H) to tilt mirror down.

4. Push switch (E) to angle mirror left or switch (F) to angle mirror right.
