Implement Power Relay Module

RXA0100354-UN-03FEB09

Implement Power Relay Module

RXA0100356-UN-03FEB09

Remove Cover To Access Implement Power Relay Module

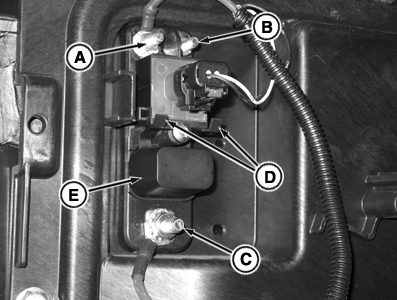

A - Switched Power Lug

B - Unswitched Power Lug

C - Input Stud

D - Fuse Cover Tabs

E - Fuse Cover

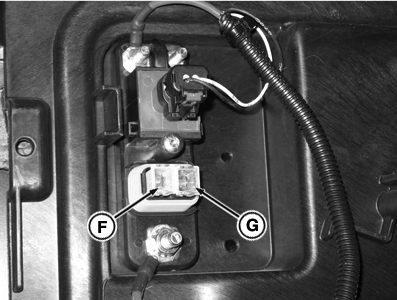

F - 60 Amp Fuse

G - 30 Amp Fuse

Remove cab back panel. In upper left corner is a relay module to route power to implement Bus Breakaway Connector.

Top left module stud is switched power lug (A) protected by a 60 Amp fuse (F). Top right module stud is unswitched power lug (B) protected by a 30 Amp fuse (G).

Bottom center is the battery power input stud (C).

To Change Fuses

1. Press down on fuse cover tabs (D) and remove fuse cover (E).

2. To remove, pull fuse straight back.

3. Replace with new fuse.

4. Replace cover and slide tabs over cover edge to hold in place.
