Mounting StarFire™ Receiver

CAUTION:

RXA0101103-UN-19MAR09

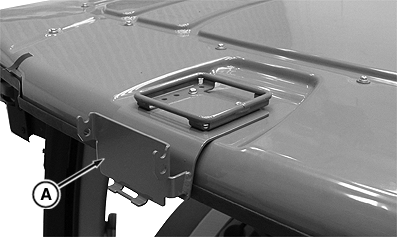

Stacked Configuration

RXA0101101-UN-19MAR09

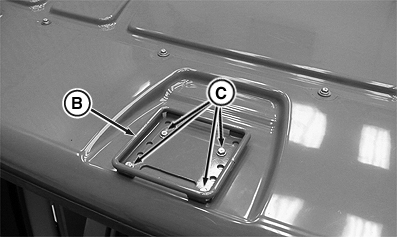

Cap Screws And STARFIRE Receiver Bottom Attaching Shroud Bracket

RXA0101105-UN-19MAR09

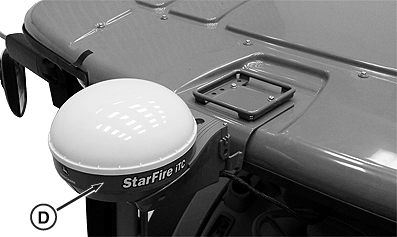

STARFIRE Receiver With Rear Attaching Shroud

RXA0101107-UN-19MAR09

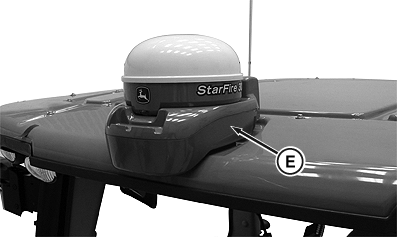

STARFIRE Receiver With Bottom Attaching Shroud Installed

A - STARFIRE Receiver Bracket (Rear Attaching Shroud)

B - STARFIRE Receiver Bracket (Bottom Attaching Shroud)

C - Cap Screws

D - STARFIRE Receiver With Rear Attaching Shroud

E - STARFIRE Receiver With Bottom Attaching Shroud

Handle global positioning receivers and brackets safely. Falling while installing or removing a global positioning receiver can cause serious injury. Use a ladder or platform to easily reach a mounting location.

Use sturdy and secure footholds and hand holds. Do not install or remove the receiver in wet or icy conditions.

STARFIRE receiver brackets are installed in a stacked configuration on top of tractor roof. Bracket (A) is installed below bracket (B) with four cap screws (C).

Bracket (A) is compatible with STARFIRE receivers equipped with rear attaching shrouds (D).

NOTE: Bracket (A) and bracket (B) may remain in stacked configuration.

Bracket (B) is only compatible with STARFIRE receivers equipped with bottom attaching shrouds (E).

NOTE: Bracket (A) must be removed when using bottom attaching shrouds (E).

Remove four cap screws (C), remove both brackets, then re-install bracket (B) using original four cap screws.

NOTE: Refer to your John Deere™ dealer or to STARFIRE receiver installation instructions for further compatibility.

See your John Deere dealer for compatible adapter harnesses.
