Replacing Brake or Turn Signal Light Bulb

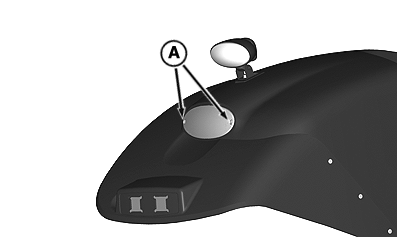

RXA0099661-UN-30OCT08

Remove Lens

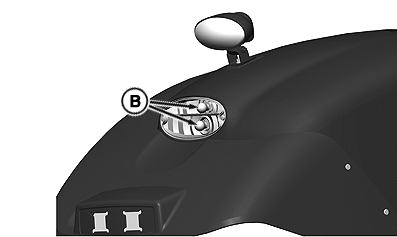

RXA0099662-UN-03NOV08

Remove Light

A - Screws

B - Light Bulb

1. Remove screws (A) and lens.

2. Turn bulb (B) counterclockwise 1/4 turn and pull out to remove.

3. Install new bulb in fixture and turn 1/4 turn clockwise.

4. Replace lens and screws.
