Towing Tractor

CAUTION:

RW55349A
RW55349A-UN-22OCT99

RW55350A
RW55350A-UN-22OCT99

Standard MFWD

A - Drive Shaft Shield

B - Snap Ring

Avoid personal injury or death. Disconnect MFWD or ILS ™ (Independent Link Suspension) drive shaft(s) if towing tractor with front wheels on a carrier. Loss of electrical power or transmission-hydraulic system pressure will engage the MFWD and pull tractor off carrier, even with switch in the DISENGAGED position.

IMPORTANT: Avoid transmission and drive train component damage:

  • Never attempt to start tractor by towing. Engine will not start.
  • If possible, operate engine above 1250 rpm to provide lubrication, power steering and power brakes.
  • Do not tow a tractor faster than 8 km/h (5 mph). Do not exceed 3 km/h (2 mph) for the first ten minutes in below freezing temperatures.
  • Check transmission-hydraulic oil level. Add 4 L (1 gal) for each 152 mm (6 in.) front wheels are raised off the ground. Do not raise wheels more than 305 mm (12 in.). Drain excess oil after transporting.


Towing Tractor with Front Wheels on a Carrier

IMPORTANT: Check transmission-hydraulic oil level. Add 4 L (1 gal) for each 152 mm (6 in.) front wheels are raised off the ground. Do not raise wheels more than 305 mm (12 in.). Drain excess oil after transporting.

MFWD AXLE:

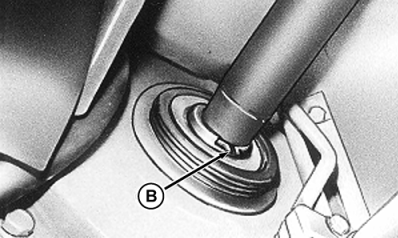

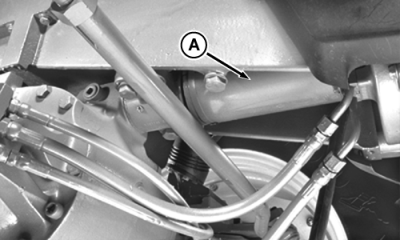

  • Remove drive shaft shield (A). Spread snap ring (B) and slide shaft forward from clutch.
  • Install cap plug in clutch housing to protect from dirt.

INDEPENDENT LINK SUSPENSION:

RXA0087519
RXA0087519-UN-10MAR06

A - Cap Screws

B - Drive Shaft

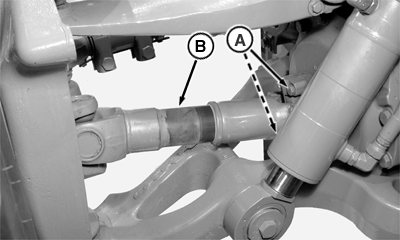

  • Remove top and bottom cap screws (A) from each side of the drive shaft yoke.
  • Collapse each drive shaft (B) to minimum length.
  • Suspend each drive shaft using a sling.

Momentarily depress brake pedals to make sure differential lock is not engaged.
