Releasing Park Brake (Powershift Transmission)
RXA0082665-UN-28JUL05

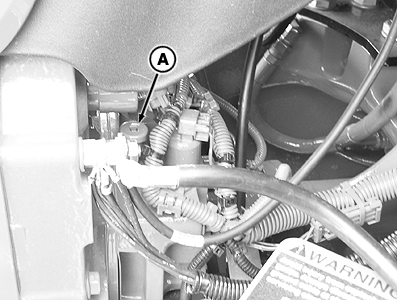

A - Park Brake Valve
The park brake must be released to tow tractor. With tractor on level surface (or block wheels to prevent motion), move gear shift lever to PARK position. Open battery compartment to expose park brake valve (A) and push it down with your hand.NOTE: To disengage the park brake, pump clutch pedal approximately 20 times or until clutch pedal no longer fully returns. In cold temperatures pumping the clutch pedal may not work. A hydraulic hand pump can be used. See your John Deere™ dealer.
Move gear shift lever to NEUTRAL position when towing.
After towing, pull up park brake release valve from the tow position. Move shift lever from NEUTRAL to PARK position and start engine.
CAUTION: Clutch pedal will return quickly with a strong force
when shift lever is moved from the PARK position. Depress clutch pedal
and release slowly to avoid injury.
|
John Deere is a trademark of Deere & Company |
OURX935,0000AD2-19-20090825 |
