Transporting on Flat-Bed Carrier

RXA0086733-UN-14FEB06

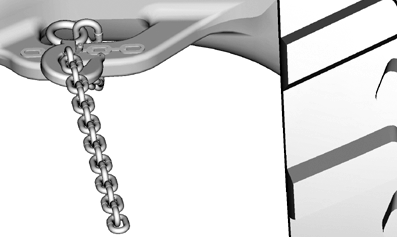

Standard MFWD Axle

RXA0086293-UN-13FEB06

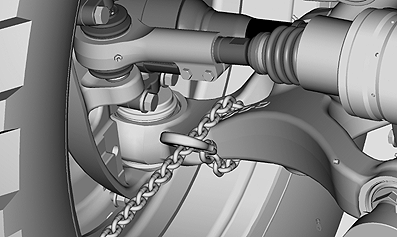

Independent Link Suspension Axle

CAUTION: To avoid accident or injury, securely chain the tractor to carrier. DO NOT chain to tractor components other than those areas listed. DRIVE CAREFULLY.

IMPORTANT: A disabled tractor should be hauled on a flat-bed carrier.

Engage PARK position.

NOTE: If park brake has been disengaged, engage park brake. See Towing Tractor in this section.

Two-Wheel Drive Tractors:

Wrap chain around front axle bottom support and secure to carrier.

MFWD Axle:

Attach chain to tie-down loops on each side of the axle and secure to carrier.

ILS ™ (Independent Link Suspension) Axle:

IMPORTANT: Attach chain to lower support arm only. Attaching chain at any other point could cause component damage.

NOTE: Suspension does NOT have to be collapsed for transporting tractor.

Attach chain to the outer lower support arm on each side of the axle and secure to carrier.
