Compact Disc (CD) Mode—Premium Radio

RXA0101846
RXA0101846-UN-06MAY09

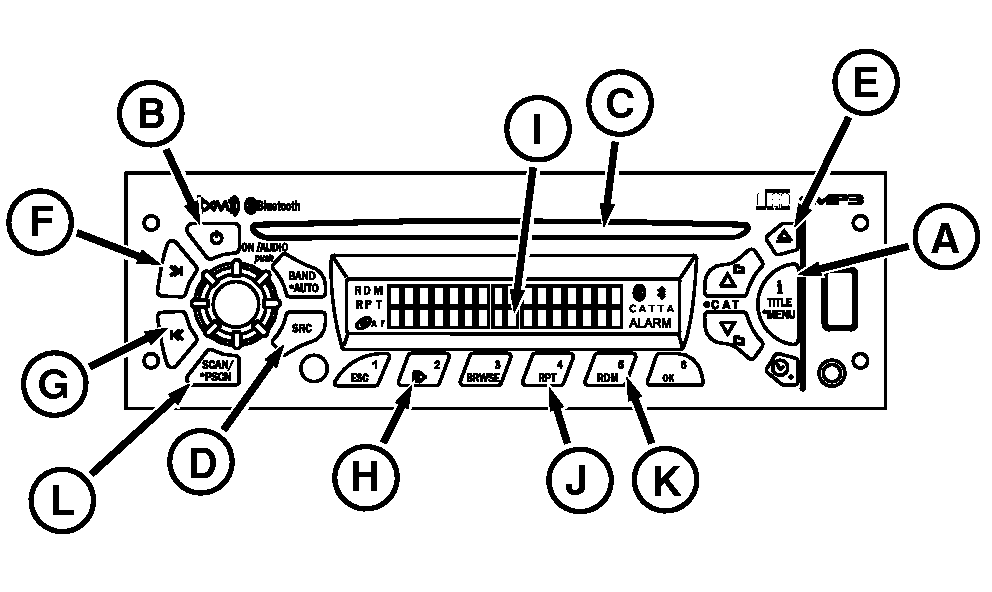

Radio With CD Player

A - i Title/Menu

B - Radio ON

C - CD Slot

D - SRC

E - Eject

F - SCAN >>

G - SCAN <<

H - Pause/Play

I - Display

J - Repeat

K - Random

L - SCAN/PSCAN

Playing Compact Disc (CD):

  1. Turn ignition on and press ON (B) to turn radio on.

  2. Insert a disc partway into CD slot (C), label-side up. CD player will automatically pull disc in. Radio displays CD READING, then CD icon followed by track number and elapsed time. until first track is played. Then CD begins playing.

    NOTE: CD must be loaded into CD player. If no CD has been loaded, the option will not be available and go to the next available source. If no available source radio will remain on Rear AUX.

    If CD is ejected and not removed within 15 seconds, CD will reload but will not start playing until SRC button is pressed.

  3. CD Mode Displays

    Press the iTitle/Menu Button (A) to toggle between different displays views:

    • Artist Name
    • Song Name
    • Album Name

    NOTE: CD player plays full size CDs, MP3 and WMA discs.

    CD information including disc and track title is shown on display (I) when track starts to play. If there is more information than can appear on display at one time, display will advance every 2 seconds until all information has appeared.

  4. Press SRC button (D) to play CD.

    If CD is loaded, CD icon remains on until it is ejected. CD READING appears followed by track number and elapsed time.

    NOTE: If CD is ejected but not removed within 15 seconds, CD will reload but not play until SRC button is pressed.

  5. To remove CD from player, press Eject Button (E).

Button Functions

SEEK >> (F):

  • Press for less than 2 seconds to forward to next track.
  • Press and hold same button to fast forward, when released CD plays.

SEEK << (G):

  • Press button for less than 2 seconds to go to the beginning of current track.
  • Press button within first 10 seconds of the track, radio goes to previous track.
  • Press and hold button to fast forward, when released CD plays.
  • Press button again within first second to go to the beginning of previous track.
  • Press and hold to fast reverse. Release button, disc begins playing.

PAUSE/PLAY (H):

  • Press button to pause a CD. ”PAUSE” is viewed on radio display (I) and audio is muted.
  • Press button again to resume playing.

RPT (J):

  • Press button to repeat current track playing. ”Track Repeat” is displayed.
  • Press button again to stop repeating.

RDM (K):

  • Press button to activate random track selection. RDM icon on display indicates that tracks on the loaded disc are played randomly.
  • Press button again to stop random track selection.

TRACK SCAN :

  • Press SCAN/PSCAN (L) for less than 2 seconds to scan tracks on a disc. After playing 8 seconds of current track, radio will go to next track.
  • When all tracks on disc have been scanned, SCAN ends and playback begins with first track of SCAN.
  • Press SCAN again to deactivate scan.
